Toyota Tacoma (2015-2018) Service Manual: Road Test
ROAD TEST
HINT:
'SET' and '-', 'RES' and '+', 'ON-OFF' functions share the same switch. Operate the cruise control main switch according to the directions indicated on the switch.
1. INSPECT 'SET' FUNCTION

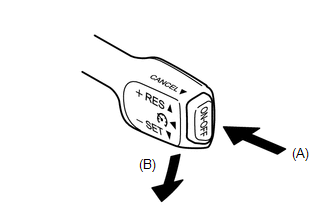

(a) Push the ON-OFF button on (A).
(b) Drive at the vehicle at a desired speed 40 km/h (25 mph) or higher.
(c) Push down the control switch lever to "-/SET" to set the cruising speed (B).
(d) After releasing the lever, check that the vehicle cruises at the set speed.
2. INSPECT '+' FUNCTION
(a) Set a desired speed as in step 1.

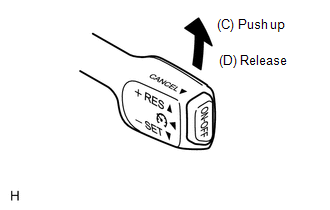

(b) Check that the vehicle speed increases while the control switch lever is pushed up to "+/RES" (C).
(c) Check that the vehicle cruises at the newly set speed when the switch is released (D).
(d) Momentarily (approximately 0.6 seconds) push up the control switch lever to the "+/RES", and then release it. Check that the vehicle speed increases by approximately 1.0 km/h or 1 mph with each lever operation (Tap-up function).
3. INSPECT '-' FUNCTION
(a) Set a desired speed as in step 1.

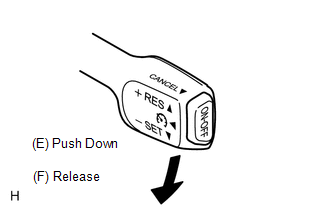

(b) Check that the vehicle speed decreases while the control switch lever is pushed down to "-/SET" (E).
(c) Check that the vehicle cruises at the newly set speed when the switch is released (F).
(d) Momentarily (approximately 0.6 seconds) push down the control switch to "-/SET", and then release it. Check that the vehicle speed decreases by approximately 1.0 km/h or 1 mph with each lever operation (Tap-down function).
HINT:
- The cruise control system automatically cancels when the vehicle speed decreases to below 40 km/h (25 mph).
4. INSPECT 'CANCEL' FUNCTION
(a) Set a desired speed as in step 1.
(b) Check that the system cancels cruise control when one of the following is conducted:
(1) Depressing the brake pedal.
(2) Shifting into any position except D and S while driving.

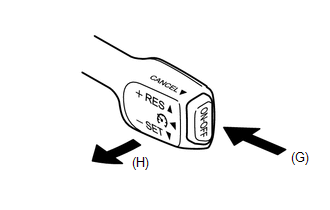

(3) Pushing the cruise control main switch ON-OFF button off (G).
(4) Pulling the cruise control switch lever to "CANCEL" (H).
5. INSPECT ' RES (RESUME)' FUNCTION
(a) Set a desired speed as in step 1.

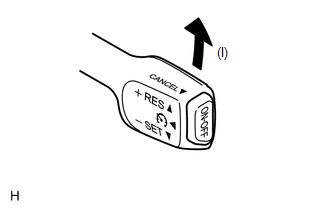

(1) After canceling the cruise control according to any of the above operations except (G), push up the switch lever to "+/RES" at a speed of 40 km/h (25 mph) or higher (I).
(2) Check that the vehicle resumes the previously set speed.
HINT:
The 'RES' function does not resume the set speed when the vehicle speed decreases to below 40 km/h (25 mph).
