Toyota Tacoma 2015-2018 Service Manual: Inspection

INSPECTION

PROCEDURE

1. INSPECT REAR AXLE SHAFT

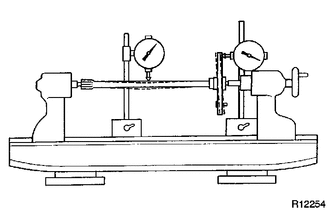

(a) Using a dial indicator, measure the runout of the shaft and flange.

(a) Using a dial indicator, measure the runout of the shaft and flange.

Maximum runout:

Shaft runout: 1.5 mm (0.0591 in.)

Flange runout: 0.05 mm (0.0020 in.)

If the rear axle shaft or flange is damaged or worn, or the runout is greater than the maximum, replace the rear axle shaft.
