Toyota Tacoma (2015-2018) Service Manual: Switch Failure (B2342)
DESCRIPTION
This DTC is stored when the sliding roof ECU (sliding roof drive gear sub-assembly) detects that the sliding roof switch is stuck for 30 seconds or more.
|
DTC No. |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
B2342 |
Sliding roof ECU (sliding roof drive gear sub-assembly) detects sliding roof switch is stuck for 30 seconds or more. |
|
WIRING DIAGRAM
Refer to DTC B2341 (See page .gif)
).
CAUTION / NOTICE / HINT
NOTICE:
When the sliding roof ECU (sliding roof drive gear sub-assembly) is removed and
reinstalled or replaced, it requires initialization (See page
).
PROCEDURE
|
1. |
READ VALUE USING TECHSTREAM (SLIDING ROOF SWITCH) |
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Enter the following menus: Body Electrical / Sliding Roof / Data List.
(e) Read the Data List according to the display on the Techstream.
Sliding Roof|
Tester Display |
Measurement Item/Range |
Normal Condition |
Diagnostic Note |
|---|---|---|---|
|
Open Switch Failure(Past) |
Open switch failure signal (Past)/ON or OFF |
ON: Sliding roof open switch failure signal (Past) OFF: No sliding roof open switch failure signal (Past) |
- |
|
Close Switch Failure(Past) |
Close switch failure signal (Past)/ON or OFF |
ON: Sliding roof close switch failure signal (Past) OFF: No sliding roof close switch failure signal (Past) |
- |
|
Up Switch Failure(Past) |
Up switch failure signal (Past)/ON or OFF |
ON: Sliding roof tilt up switch failure signal (Past) OFF: No sliding roof tilt up switch failure signal (Past) |
- |
|
Down Switch Failure(Past) |
Down switch failure signal (Past)/ON or OFF |
ON: Sliding roof tilt down switch failure signal (Past) OFF: No sliding roof tilt down switch failure signal (Past) |
- |
|
Open Switch Failure(Current) |
Open switch failure signal (Current)/ON or OFF |
ON: Sliding roof open switch failure signal (Current) OFF: No sliding roof open switch failure signal (Current) |
- |
|
Close Switch Failure(Current) |
Close switch failure signal (Current)/ON or OFF |
ON: Sliding roof close switch failure signal (Current) OFF: No sliding roof close switch failure signal (Current) |
- |
|
Up Switch Failure(Current) |
Up switch failure signal (Current)/ON or OFF |
ON: Sliding roof tilt up switch failure signal (Current) OFF: No sliding roof tilt up switch failure signal (Current) |
- |
|
Down Switch Failure(Current) |
Down switch failure signal (Current)/ON or OFF |
ON: Sliding roof tilt down switch failure signal (Current) OFF: No sliding roof tilt down switch failure signal (Current) |
- |
OK:
"OFF" appears on the Techstream screen.
| OK | .gif) |
REPLACE SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY) |
|
.gif)
|
2. |
CHECK HARNESS AND CONNECTOR (SLIDING ROOF ECU - BODY GROUND) |
(a) Disconnect the S50 sliding roof ECU (sliding roof drive gear sub-assembly) connector.
(b) Disconnect the R44 sliding roof switch (roof console box assembly) connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
S50-7 (OPN) - Body ground |
Always |
10 kΩ or higher |
|
S50-6 (DWN) - Body ground |
Always |
10 kΩ or higher |
|
S50-5 (CLS) - Body ground |
Always |
10 kΩ or higher |
|
S50-4 (UP) - Body ground |
Always |
10 kΩ or higher |
| NG | |
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
3. |
INSPECT SLIDING ROOF SWITCH (ROOF CONSOLE BOX ASSEMBLY) |
|
(a) Remove the sliding roof switch (roof console box assembly) (See page
|
|

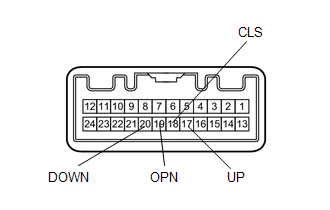

(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
17 (UP) - 12 (GND) |
UP switch is pressed |
Below 1 Ω |
|
17 (UP) - 12 (GND) |
UP switch is not pressed |
10 kΩ or higher |
|
20 (DOWN) - 12 (GND) |
DOWN switch is pressed |
Below 1 Ω |
|
20 (DOWN) - 12 (GND) |
DOWN switch is not pressed |
10 kΩ or higher |
|
19 (OPN) - 12 (GND) |
OPEN switch is pressed |
Below 1 Ω |
|
19 (OPN) - 12 (GND) |
OPEN switch is not pressed |
10 kΩ or higher |
|
18 (CLS) - 12 (GND) |
CLOSE switch is pressed |
Below 1 Ω |
|
18 (CLS) - 12 (GND) |
CLOSE switch is not pressed |
10 kΩ or higher |
|
*a |
Component without harness connected (Sliding Roof Switch (Roof Console Box Assembly)) |
| OK | |
REPLACE SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY) |
| NG | |
REPLACE SLIDING ROOF SWITCH (ROOF CONSOLE BOX ASSEMBLY) |
Dtc Check / Clear
