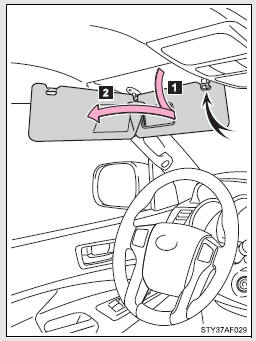

Type A
Forward position: Flip down.
Side position: Flip down, unhook, and swing to the side.

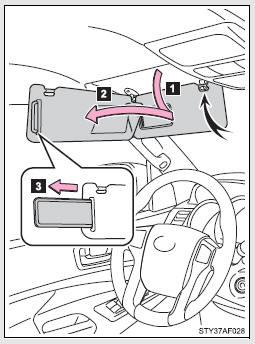

Type B
Forward position: Flip down.
Side position: Flip down, unhook, and swing to the side.
Side extender: Place in side position, then slide backwards.
