Toyota Tacoma 2015-2018 Service Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

CAUTION:

  • Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing (See page If the side airbag was deployed, replace the front seat assembly with ).
  • If the side airbag was deployed, replace the front seat assembly with a new one.

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click here 2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here 3. REMOVE SEAT TRACK COVER

3. REMOVE SEAT TRACK COVER

HINT:

HINT:

Use the same procedures for both sides.

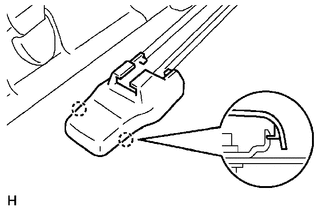

(a) Disengage the 2 claws to remove the seat track cover.

4. REMOVE FRONT SEAT ASSEMBLY

(a) Disengage the wire harness clamp.

(b) Disconnect the connectors.

(c) Disconnect the front seat airbag connector.

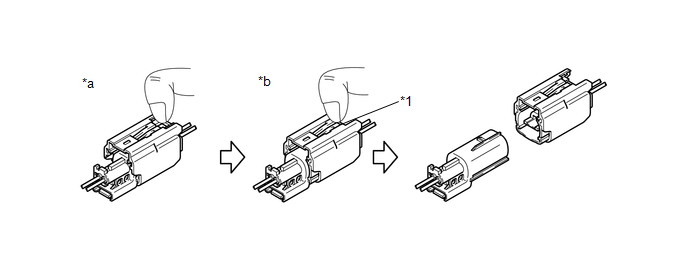

(1) Place a finger on the slider, slide the slider to release the lock, and then disconnect the front seat airbag connector.

Text in Illustration

*1

Slider

-

-

*a

Push

*b

Slide

(d) Move the seat to the center position.

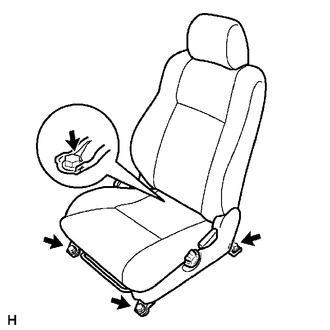

(e) Remove the 4 bolts and front seat assembly.

NOTICE:

Be careful not to damage the vehicle body.
