Toyota Tacoma 2015-2018 Service Manual: Components

COMPONENTS

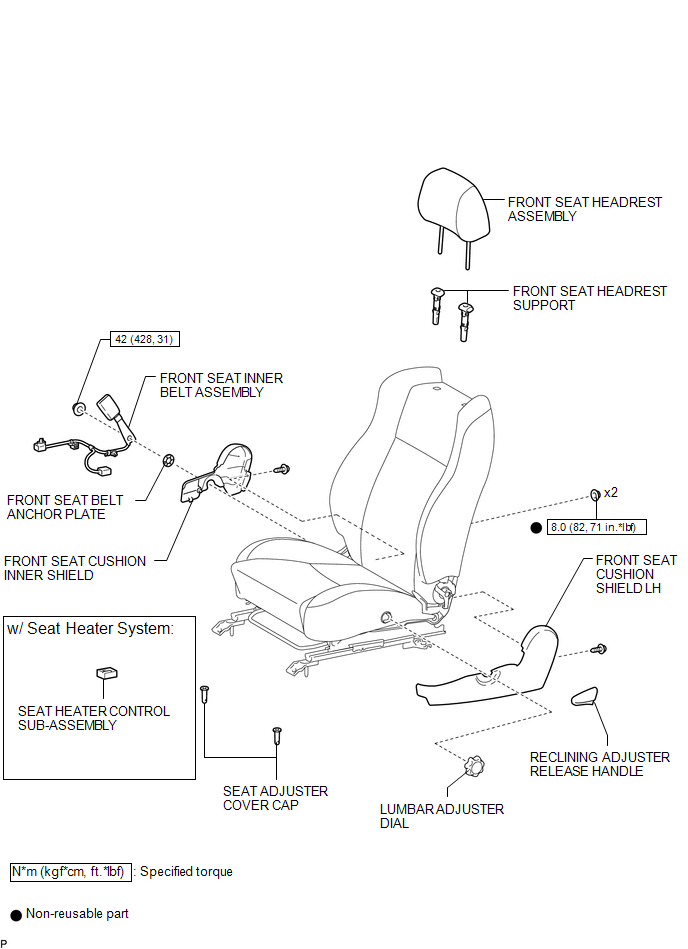

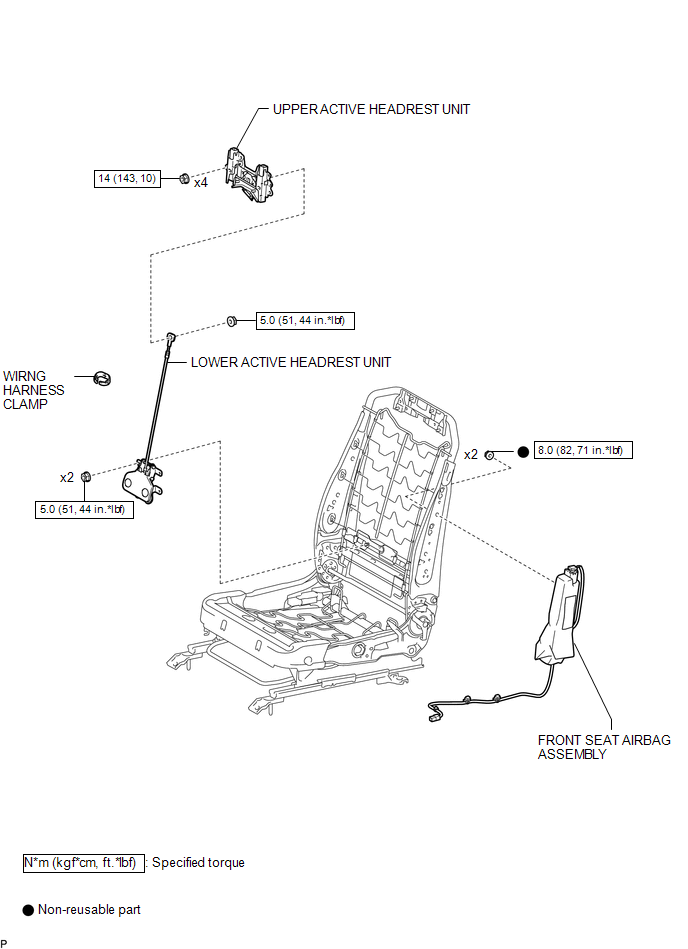

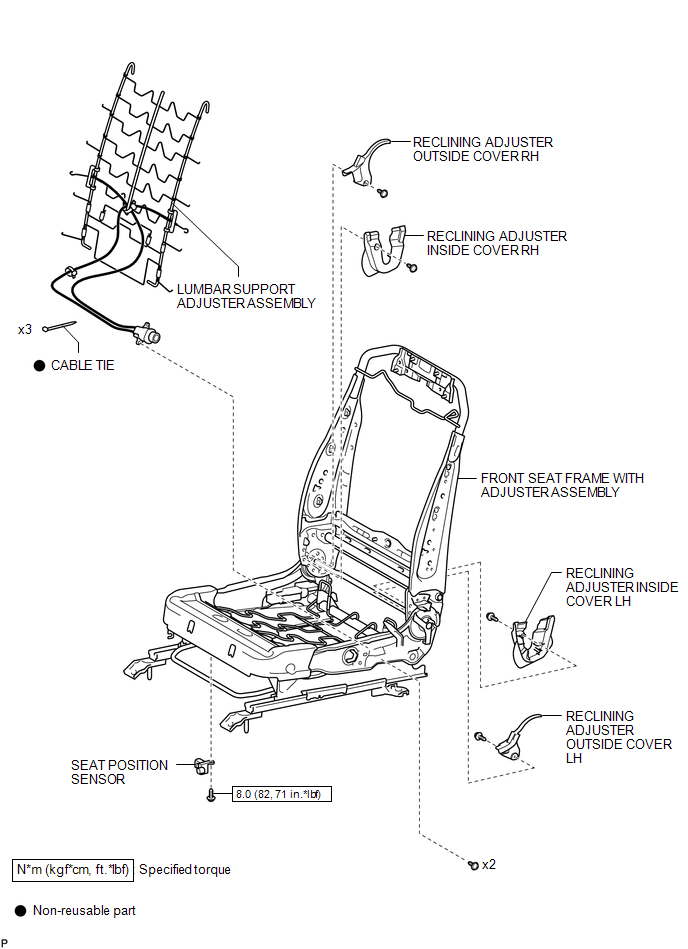

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

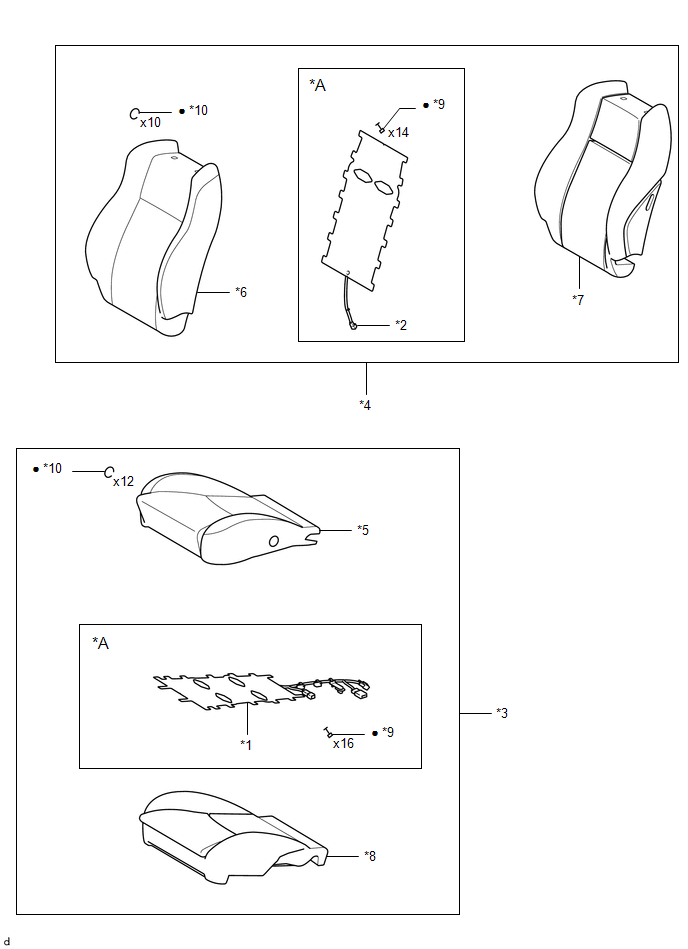

*A

w/ Seat Heater System

-

-

*1

FRONT SEAT CUSHION HEATER ASSEMBLY

*2

FRONT SEATBACK HEATER ASSEMBLY

*3

SEAT CUSHION COVER WITH PAD

*4

SEATBACK COVER WITH PAD

*5

SEPARATE TYPE FRONT SEAT CUSHION COVER

*6

SEPARATE TYPE FRONT SEATBACK COVER

*7

SEPARATE TYPE FRONT SEATBACK PAD

*8

SEPARATE TYPE FRONT SEAT CUSHION PAD

*9

TAG PIN

*10

HOG RING

Non-reusable part

-

-

Front Seat Assembly(for Driver Side)
...

Removal
REMOVAL CAUTION / NOTICE / HINT CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing ...
