Toyota Tacoma 2015-2018 Service Manual: Parts Location

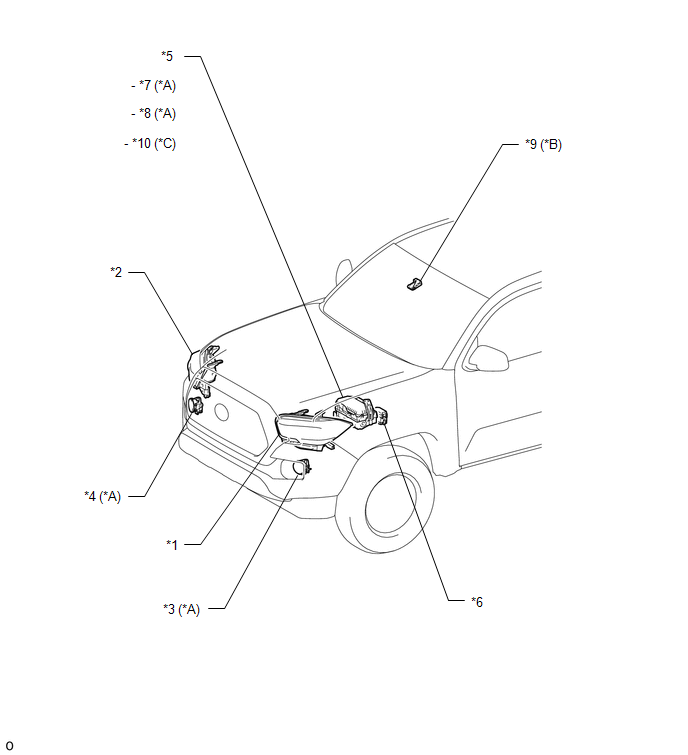

PARTS LOCATION

ILLUSTRATION

*A

w/ Fog Light

*B

w/ Automatic High Beam System

*C

for Manual Transmission

-

-

*1

HEADLIGHT ASSEMBLY LH

*2

HEADLIGHT ASSEMBLY RH

*3

FOG LIGHT ASSEMBLY LH

*4

FOG LIGHT ASSEMBLY RH

*5

ENGINE ROOM RELAY BLOCK

- ECU-B NO. 3 FUSE

- DRL FUSE

- H-LP LO FUSE

- H-LP LO RELAY

- DIMMER FUSE

- DIMMER RELAY

- BKUP LP NO. 1 FUSE

- BKUP LP RELAY

- STOP RELAY

- STOP FUSE

- H-LP LH-LO FUSE

- H-LP RH-LO FUSE

- H-LP LH-HI FUSE

- H-LP RH-HI FUSE

*6

NO. 2 ENGINE ROOM RELAY BLOCK

- DRL RELAY

*7

FOG FR FUSE

*8

FOG FR RELAY

*9

FORWARD RECOGNITION CAMERA

*10

BKUP LP NO. 2 FUSE

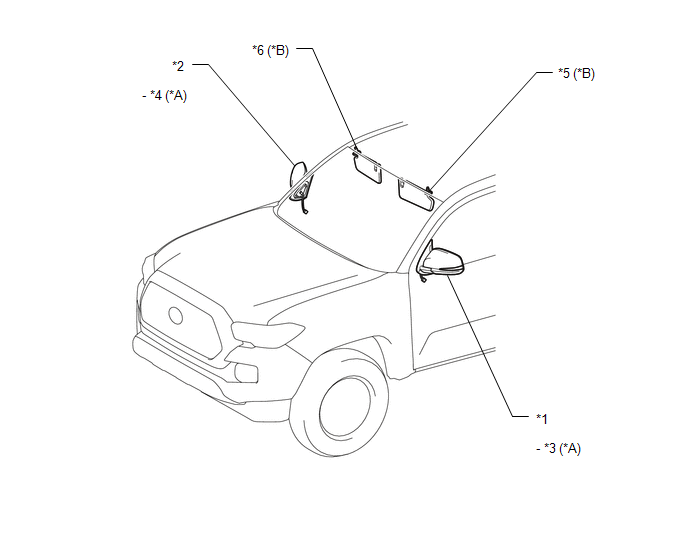

ILLUSTRATION

*A

w/ Outer Rear View Mirror Type Side Turn Signal Light

*B

w/ Vanity Light

*1

OUTER REAR VIEW MIRROR ASSEMBLY LH

*2

OUTER REAR VIEW MIRROR ASSEMBLY RH

*3

SIDE TURN SIGNAL LIGHT ASSEMBLY LH

*4

SIDE TURN SIGNAL LIGHT ASSEMBLY RH

*5

Visor Assembly LH

*6

Visor Assembly RH

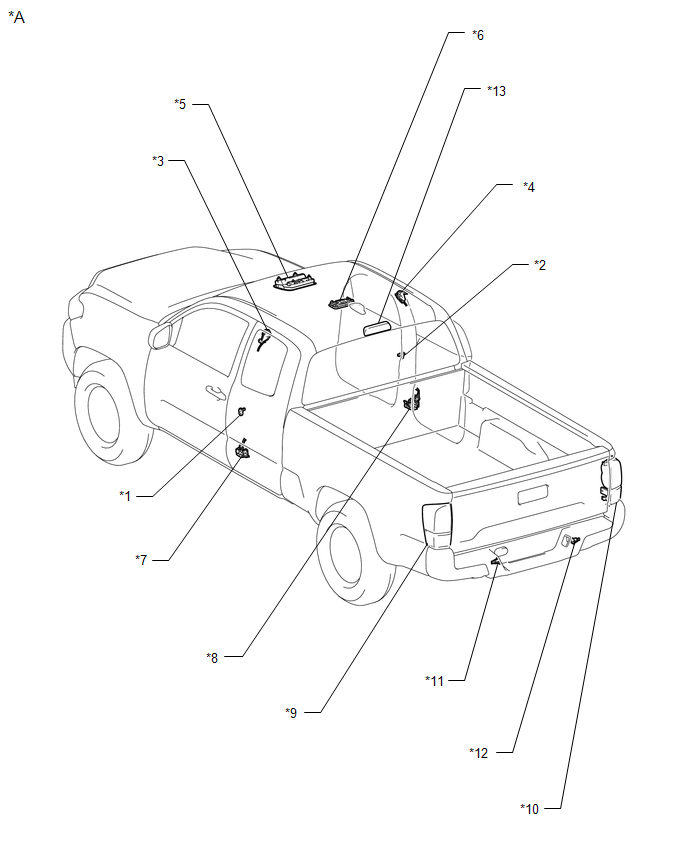

ILLUSTRATION

*A



-

-

*1

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH

*2

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH

*3

UPPER ACCESS PANEL LOCK ASSEMBLY LH

- REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH UPPER SIDE

*4

UPPER ACCESS PANEL LOCK ASSEMBLY RH

- REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH UPPER SIDE

*5

ROOF CONSOLE BOX ASSEMBLY

*6

NO. 1 ROOM LIGHT ASSEMBLY

*7

LOWER ACCESS PANEL LOCK ASSEMBLY LH

- REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH LOWER SIDE

*8

LOWER ACCESS PANEL LOCK ASSEMBLY RH

- REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH LOWER SIDE

*9

REAR COMBINATION LIGHT ASSEMBLY LH

*10

REAR COMBINATION LIGHT ASSEMBLY RH

*11

LICENSE PLATE LIGHT ASSEMBLY LH

*12

LICENSE PLATE LIGHT ASSEMBLY RH

*13

CENTER STOP LIGHT ASSEMBLY

- CARGO LIGHT

-

-

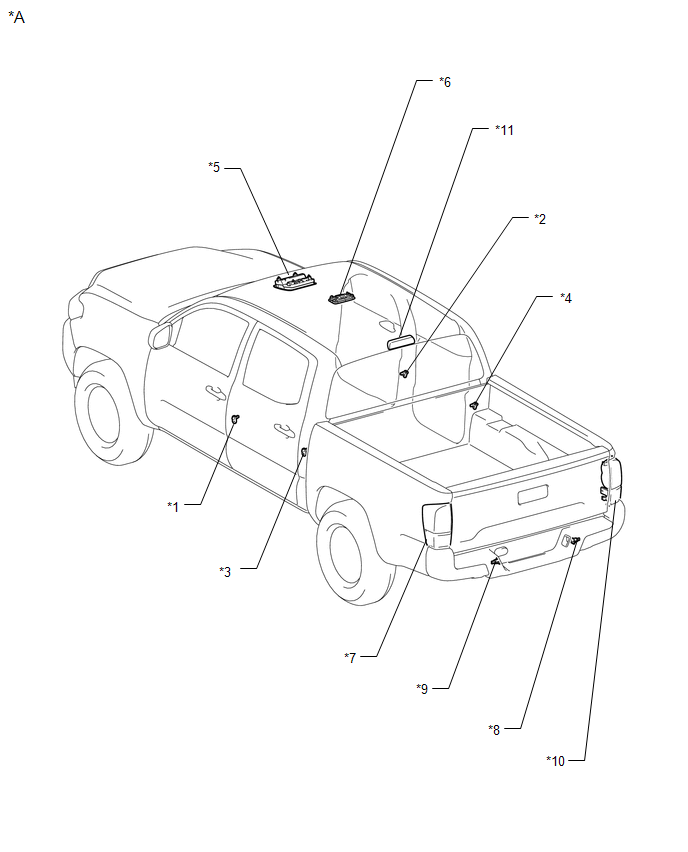

ILLUSTRATION

*A

for Double Cab

-

-

*1

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH

*2

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH

*3

REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH

*4

REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH

*5

ROOF CONSOLE BOX ASSEMBLY

*6

NO. 1 ROOM LIGHT ASSEMBLY

*7

REAR COMBINATION LIGHT ASSEMBLY LH

*8

REAR COMBINATION LIGHT ASSEMBLY RH

*9

LICENSE PLATE LIGHT ASSEMBLY LH

*10

LICENSE PLATE LIGHT ASSEMBLY RH

*11

CENTER STOP LIGHT ASSEMBLY

- CARGO LIGHT

-

-

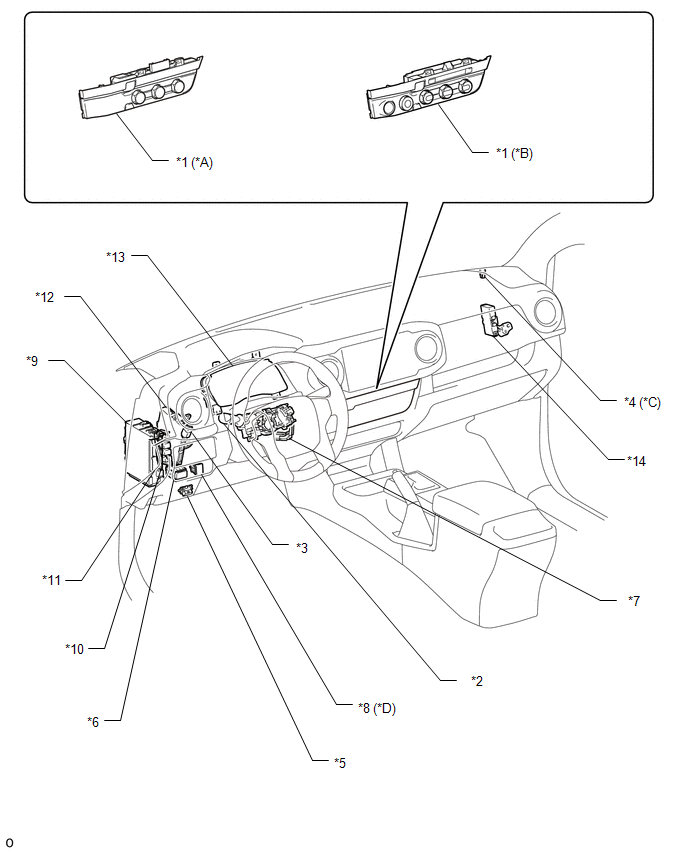

ILLUSTRATION

*A

for Manual Air Conditioning System

*B

for Automatic Air Conditioning System

*C

w/ Automatic Light Control

*D

w/ Automatic High Beam System

*1

AUTOMATIC LIGHT CONTROL SENSOR

*2

HEADLIGHT DIMMER SWITCH

*3

STOP LIGHT SWITCH

*4

AIR CONDITIONING CONTROL ASSEMBLY

*5

DLC3

*6

DECK LIGHT SWITCH ASSEMBLY

*7

TRANSPONDER KEY ECU ASSEMBLY

*8

AUTO HIGH BEAM SWITCH

*9

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*10

INSTRUMENT PANEL RELAY BLOCK

- CARGO LP RELAY

*11

DRIVER SIDE JUNCTION BLOCK

- CARGO LP FUSE

- ECU-ACC FUSE

- ACC RELAY

- ECU-IG NO. 2 FUSE

- IG1 NO. 2 RELAY

- DOME CUT RELAY

- DOME FUSE

- TAIL RELAY

- TAIL FUSE

- BKUP LP NO. 3 FUSE

- IG1 NO. 1 FUSE

- HAZ FUSE

*12

Certification ECU (Smart Key ECU Assembly)

*13

COMBINATION METER ASSEMBLY

*14

NETWORK GATEWAY ECU
