Toyota Tacoma (2015-2018) Service Manual: Parts Location
PARTS LOCATION

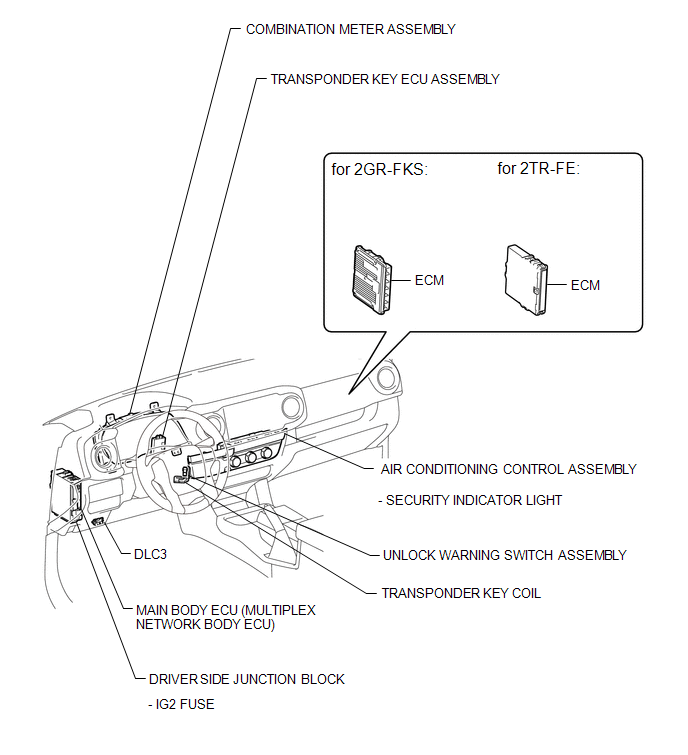

ILLUSTRATION

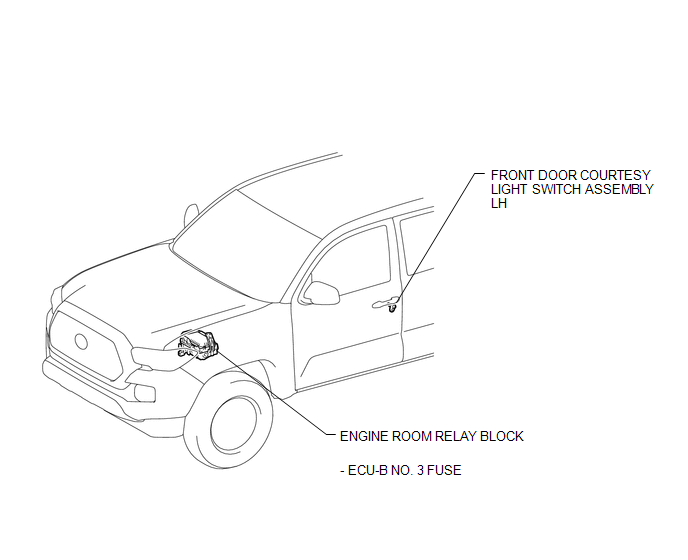

ILLUSTRATION
Precaution
PRECAUTION
1. PRECAUTIONS WHEN USING TECHSTREAM
(a) When using the Techstream to troubleshoot the engine immobiliser system:
Connect the Techstream to the DLC3 while the ignition switch is off, and ...
