Toyota Tacoma (2015-2018) Service Manual: Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for both the RH and LH sides.
  • The procedure described below is for the LH side.

PROCEDURE

1. INSTALL SIDE AIRBAG SENSOR ASSEMBLY

(a) Check that the ignition switch is OFF.

(b) Check that the cable is disconnected from the battery negative (-) terminal.

CAUTION:

After disconnecting the cable from the terminal, wait for at least 90 seconds before starting the operation.

(c) Install the side airbag sensor with the bolt.

Torque:

:

9.0 N·m {92 kgf·cm, 80 in·lbf}

NOTICE:

  • Installation of the connector is done with the sensor assembly installed. Make sure that the sensor assembly is installed to the specified torque.
  • If the sensor assembly has been dropped, or there are cracks, dents or other defects in the case, bracket or connector, replace the sensor assembly with a new one.
  • When installing the sensor assembly, make sure that the SRS wiring does not interfere with other parts and is not pinched between other parts.
  • After installation, shake the sensor assembly to check that it is not loose.

(d) Check that there is no slack in the installation parts of the side airbag sensor.

(e) Connect the connector to the side airbag sensor.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.

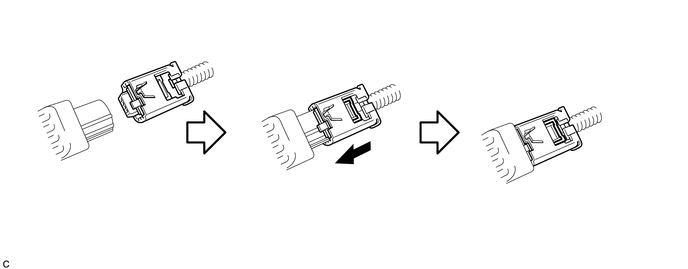

(1) Connect the connector as shown in the illustration (when locking, make sure that the outer connector locking sleeve returns to its original position and a click sound can be heard).

HINT:

HINT:

When connected, the outer connector locking sleeve will slide. Be sure not to hold the outer connector locking sleeve while connecting, as it may result in an insecure fit.

2. INSTALL CENTER PILLAR LOWER GARNISH

3. INSTALL LAP BELT OUTER ANCHOR COVER

3. INSTALL LAP BELT OUTER ANCHOR COVER

4. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

4. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

5. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

5. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

6. INSTALL REAR DOOR SCUFF PLATE

6. INSTALL REAR DOOR SCUFF PLATE

7. INSTALL FRONT DOOR SCUFF PLATE

7. INSTALL FRONT DOOR SCUFF PLATE

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here 9. INSPECT SRS WARNING LIGHT

9. INSPECT SRS WARNING LIGHT
