INSPECTION

PROCEDURE

1. INSPECT RADIATOR CORE SUB-ASSEMBLY

Check the core plate for damage.

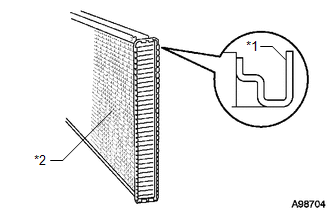

Text in Illustration

*1	Core Plate
*2	Radiator Core

If the sides of the core plate groove are deformed, it is impossible to reassemble the radiator tank. Therefore, first correct any deformation using pliers or a similar tool.
Water leakage will occur if the bottom of the core plate groove is damaged or dented. Repair or replace the core plate if necessary.

NOTICE:

The radiator assembly can only be caulked twice. After being caulked twice, the radiator assembly must be replaced.
