Toyota Tacoma (2015-2018) Service Manual: Components

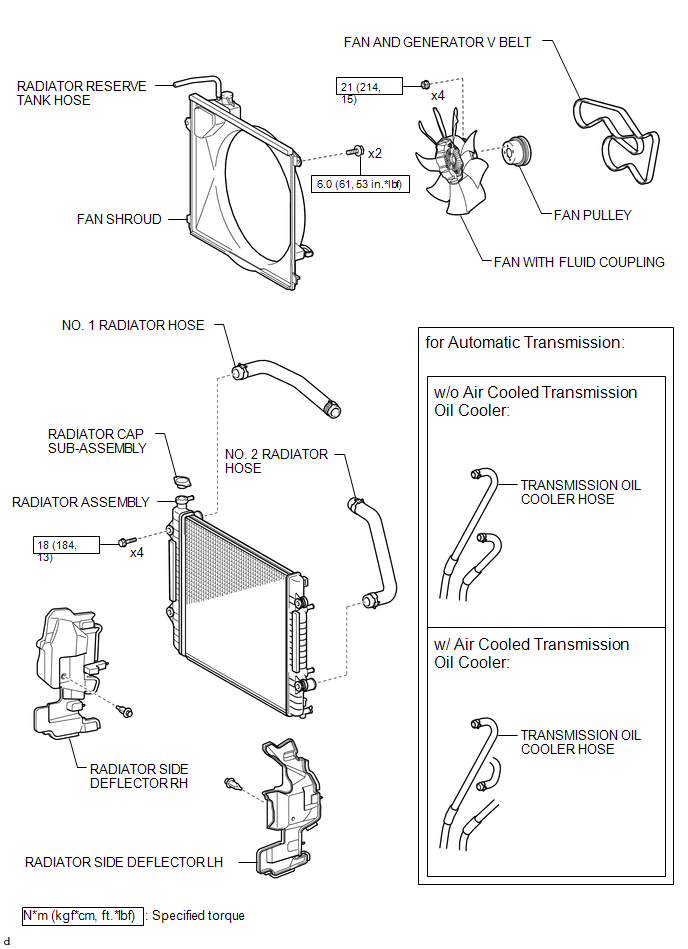

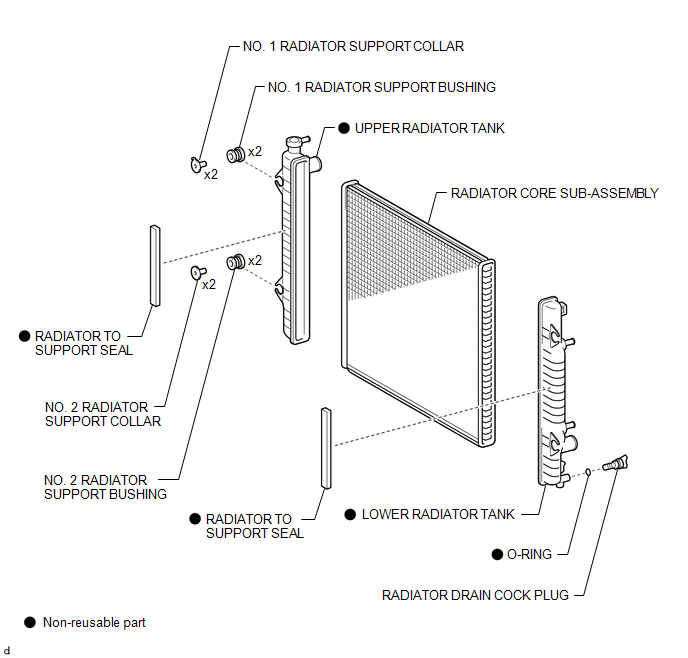

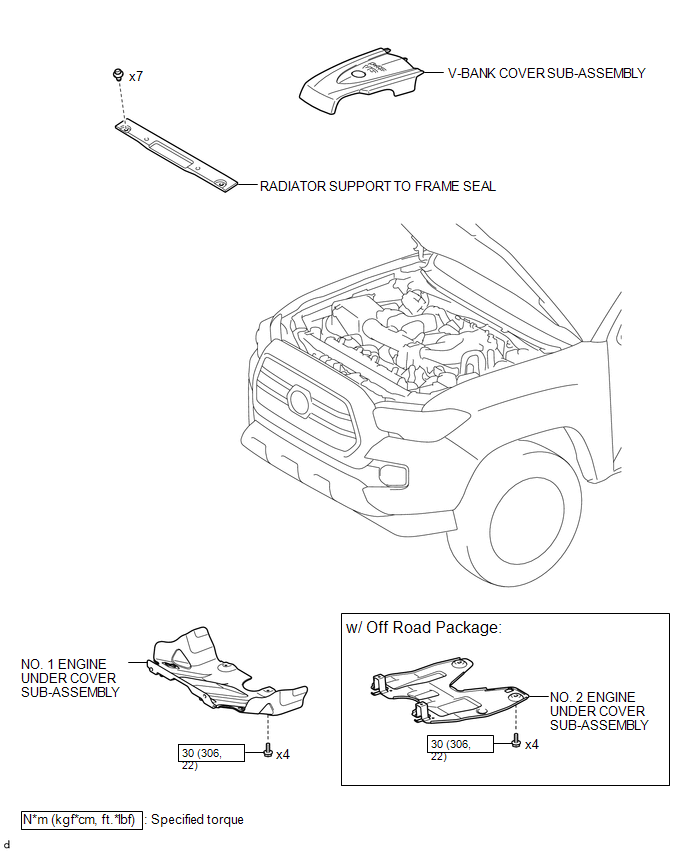

Radiator

...

On-vehicle Inspection

ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT RADIATOR CAP SUB-ASSEMBLY CAUTION: Do not remove the radiator cap sub-assembly while the engine and radiator assembly are still hot. Pressurized, hot e ...
