Toyota Tacoma (2015-2018) Service Manual: Components
COMPONENTS

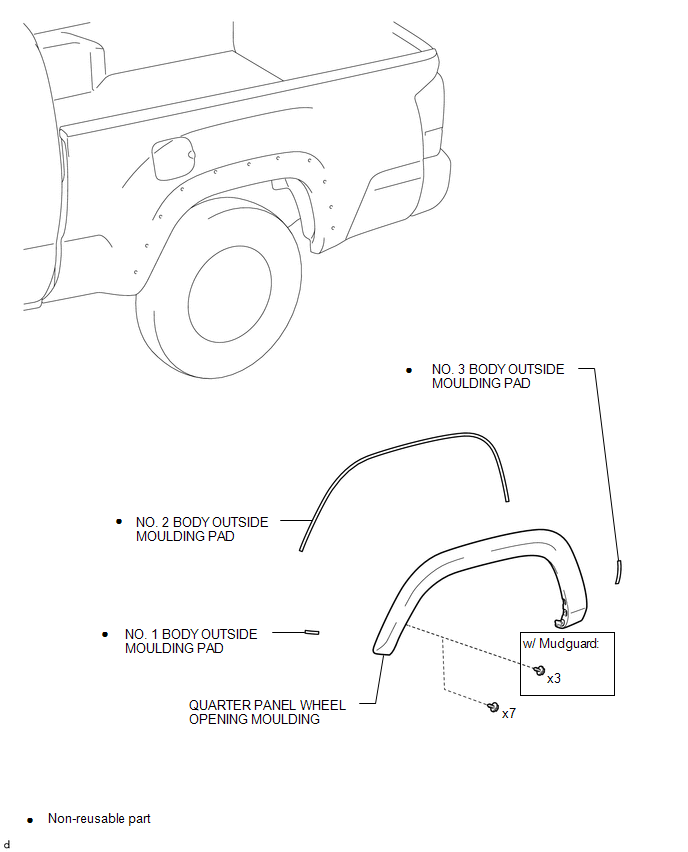

ILLUSTRATION

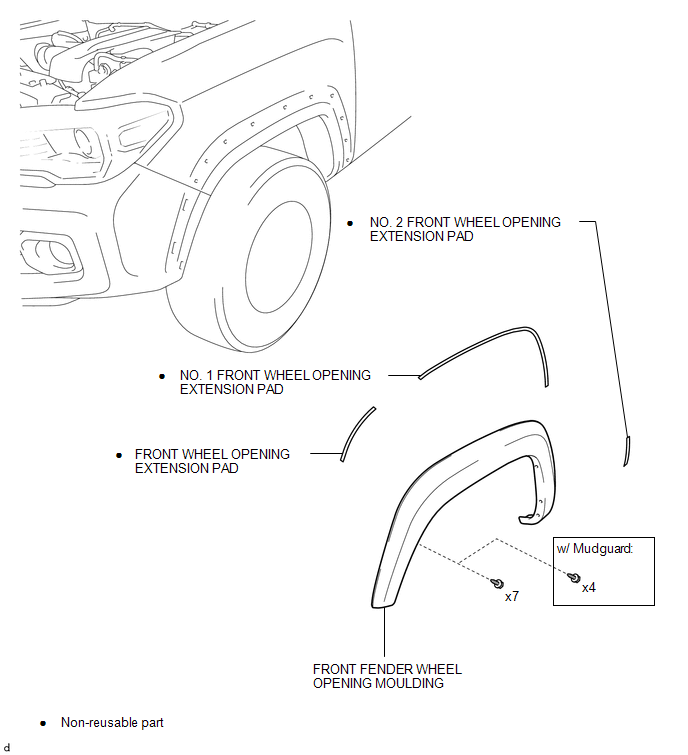

ILLUSTRATION
Disassembly
DISASSEMBLY
CAUTION / NOTICE / HINT
HINT:
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
When removing the No. 2 front wheel opening ...
