Toyota Tacoma (2015-2018) Service Manual: Power Source Circuit

DESCRIPTION

This circuit provides power to operate the forward recognition camera.

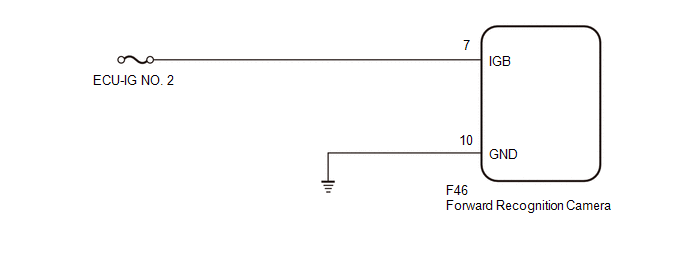

WIRING DIAGRAM

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (POWER SOURCE VOLTAGE)

(a) Disconnect the forward recognition camera connector.

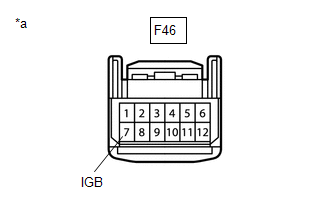

*a

Front view of wire harness connector

(to Forward Recognition Camera)

(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

F46-7 (IGB) - Body ground

Ignition switch ON

11 to 14 V

(d) Connect the forward recognition camera connector.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

2.

CHECK HARNESS AND CONNECTOR (FORWARD RECOGNITION CAMERA - BODY GROUND)

(a) Disconnect the forward recognition camera connector.

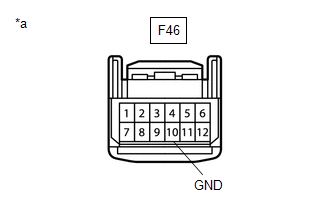

*a

Front view of wire harness connector

(to Forward Recognition Camera)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

F46-10 (GND) - Body ground

Always

Below 1 Ω

(c) Connect the forward recognition camera connector.

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
