Toyota Tacoma (2015-2018) Service Manual: Identification Information
Vehicle Identification And Serial Numbers
VEHICLE IDENTIFICATION AND SERIAL NUMBERS
1. VEHICLE IDENTIFICATION NUMBER

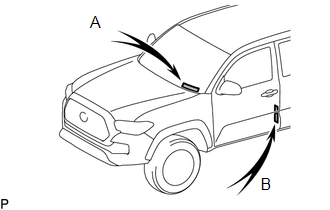

(a) The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.
A:
Vehicle Identification Number
B:
Certification Label
2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER

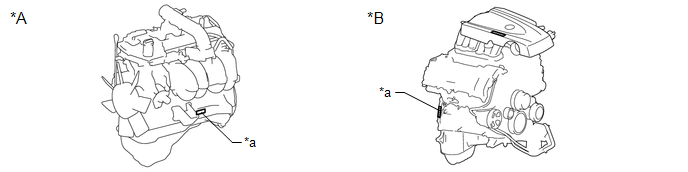

(a) The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustration.
(1) Engine Serial Number
|
*A |
2TR-FE |
*B |
2GR-FKS |
|
*a |
Engine Serial Number |
- |
- |
(2) Transmission Serial Number
|
*A |
AC60E |
*B |
AC60F |
|
*C |
RC62F |
- |
- |
|
*a |
Transmission Serial Number |
- |
- |
