Toyota Tacoma (2005–2015) Owners Manual: Clock

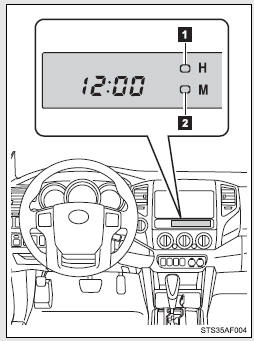

Adjusts the hours
Adjusts the minutes
■The clock is displayed when
The engine switch is in the ACC or ON position.
■When disconnecting and reconnecting battery terminals
The time display will automatically be set to 1:00.
Vanity mirrors
Vehicles without vanity light
Vehicles with vanity light
Slide the cover.
The light turns on when the cover is opened. ...
Power outlets (12 VDC)
Please use as a power supply for electronic goods that use less than 12 VDC/10
A (power consumption of 120 W).
When using electronic goods, make sure that the power consumption of all the
connect ...
