Toyota Tacoma 2015-2018 Service Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

PROCEDURE

1. PRECAUTION

CAUTION:

Be sure to read Precaution thoroughly before servicing (See page NOTICE: ).

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click here 2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Wait for at least 90 seconds after disconnecting the cable to prevent the airbag from working.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here 3. REMOVE REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH

3. REMOVE REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH

Click here 4. REMOVE REAR AIRBAG SENSOR LH

4. REMOVE REAR AIRBAG SENSOR LH

(a) Disconnect the connector from the rear airbag sensor LH.

(a) Disconnect the connector from the rear airbag sensor LH.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

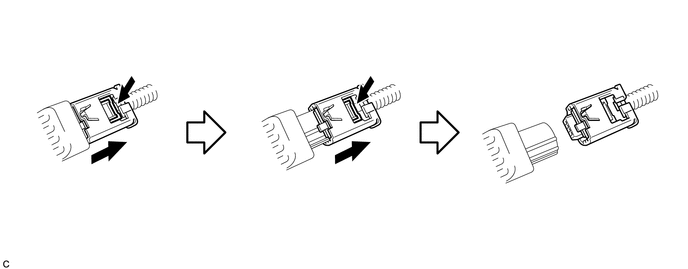

(1) Push and hold the white housing lock, and slide the yellow outer connector locking sleeve.

(2) Push and hold the white housing lock again, and slide the yellow outer connector

(2) Push and hold the white housing lock again, and slide the yellow outer connector locking sleeve to disconnect the connector.

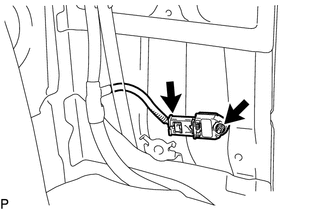

(b) Remove the nut and the rear airbag sensor LH.

NOTICE:

Loosen the nut while holding the door side airbag sensor because the rear airbag sensor pin (stopper) is easily damaged.

On-vehicle Inspection
ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT REAR AIRBAG SENSOR (for Vehicle not Involved in Collision) (a) Perform a diagnostic system check (See page ). 2. INSPECT REAR AIRBAG SENSOR (for Vehicl ...

Installation
INSTALLATION CAUTION / NOTICE / HINT PROCEDURE 1. INSTALL REAR AIRBAG SENSOR LH (a) Check that the ignition switch is OFF. (b) Check that the cable is disconnected from the battery negative (-) t ...
