ON-VEHICLE INSPECTION
PROCEDURE
1. INSPECT FLUID LEVEL IN RESERVOIR

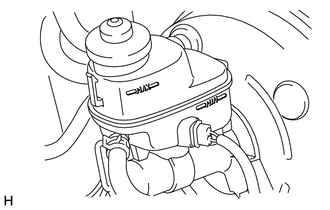

(a) Check the fluid level.
If the brake fluid level is lower than the MIN line, check for leaks and inspect the disc brake pads. If necessary, refill the reservoir with brake fluid to the MAX line after repair or replacement.
Fluid:
SAE J1703 or FMVSS No. 116 DOT 3
System Diagram
SYSTEM DIAGRAM
Transmitting ECU (Transmitter)
Receiving ECU
Signals
Communication Method
ECM
Skid control ECU
Throttle position signal
Engine speed signal
Accelerator pedal position ...
Front Camera Module Beam Axis Not Adjusted (C1AA9)
DESCRIPTION
If forward recognition camera adjustment has not been performed or did not complete
normally after the forward recognition camera was replaced with a new one, DTC C1AA9
will be stored.
DTC No.
Detection Item
DTC Detection Condition
Troubl ...
Turn signal lever
Right turn
Left turn
Move and hold the lever partway to
signal a lane change.
The right hand signal will flash until you release the lever.
Move and hold the lever partway
to signal a lane change.
The left hand signal will flash until you release the lever.
■Turn signals can be ...
