Toyota Tacoma (2015-2018) Service Manual: On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

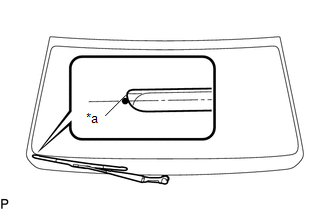

1. INSPECT FRONT WIPER MOTOR (for Driver Side)

Text in Illustration

*a

Matchmark

(a) Check the stop (park) position.

(b) Operate the windshield wiper motor assembly.

(c) Stop the windshield wiper motor assembly operation.

(d) Check the automatic stop (park) position.

HINT:

After the front wiper motor is stopped, check the automatic stop position after lifting the wiper blade 2 times.

OK:

The front wiper stops at the position shown in the illustration.

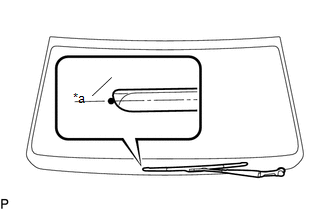

2. INSPECT FRONT WIPER MOTOR (for Front Passenger Side)

Text in Illustration

*a

Matchmark

(a) Check the stop (park) position.

(b) Operate the windshield wiper motor assembly.

(c) Stop the windshield wiper motor assembly operation.

(d) Check the automatic stop (park) position.

HINT:

After the front wiper motor is stopped, check the automatic stop position after lifting the wiper blade 2 times.

OK:

The front wiper stops at the position shown in the illustration.

Components
COMPONENTS ILLUSTRATION ...

Inspection
INSPECTION PROCEDURE 1. INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY (a) Check the LO operation. Text in Illustration *a Component without harness connected (Windshield Wipe ...
