You may replace the following bulbs yourself. The difficulty level of replacement varies depending on the bulb. If necessary bulb replacement seems difficult to perform, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your Toyota dealer.
■ Prepare a replacement light bulb
Check the wattage of the light bulb being replaced.

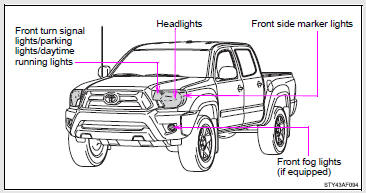

■ Front bulb locations

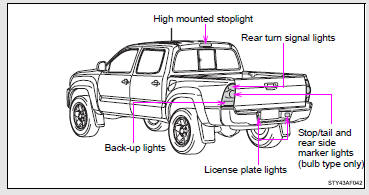

■ Rear bulb locations
Replacing light bulbs
■ Headlights
Unplug the connector.
Remove the rubber cover.
Release the bulb retaining spring.
Remove the bulb.
To install a new bulb, align the tabs of the bulb with the cutouts of the mounting hole.
■ Front fog lights (if equipped)
Unplug the connector while pulling the lock release.
Turn the bulb counterclockwise.
■ Front side marker lights
Turn the bulb base counterclockwise.
Remove the light bulb.
■ Front turn signal lights/parking lights/daytime running lights
Turn the bulb base counterclockwise.
Remove the light bulb.
■ Stop/tail lights, rear side marker lights (bulb type only), backup lights and rear turn signal lights
Remove the bolts and rear combination assembly.
Unplug the connector while depressing the lock release.
Turn the bulb bases counterclockwise.
1. Rear turn signal light
2. Stop/tail and rear side marker lights (bulb type only)
3. Back-up light
Remove the light bulb.
1. Rear turn signal light
2. Stop/tail and rear side marker lights (bulb type only)
3. Back-up light
■ High mounted stoplight
Remove the screws and cover.
Remove the light bulbs.
■ License plate lights
Remove the screw and light unit.
Turn the bulb base counterclockwise.
Remove the light bulb.
■ Lights other than the above
If any of the lights listed below has burnt out, have it replaced by your Toyota dealer.
• Side turn signal lights (if equipped)
• Stop/tail lights (LED type)
• Rear side marker lights (LED type)
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a malfunction. Contact your Toyota dealer for more information in the following situations: ●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■LED light bulbs
The side turn signal lights (if equipped), stop/tail and rear side marker lights (LED type) consist of a number of LEDs. If any of the LEDs burn out, take your vehicle to your Toyota dealer to have the light replaced.
If two or more LEDs in a stop light burn out, your vehicle may not conform to local laws (SAE).
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately after turning off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is unavoidable to hold the glass portion, use and hold with a clean dry cloth to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may result in heat damage, fire, or water entering the headlight unit. This may damage the headlights or cause condensation to build up on the lens.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.
Floor mat
Use only floor mats designed specifically for vehicles of the same model and
model year as your vehicle. Fix them securely in place onto the carpet.
Insert the retaining hooks (clips) into the floor mat eyelets.
Turn the upper knob of each retaining hook (clip) to secure the floor mats in
...
Disassembly
DISASSEMBLY
PROCEDURE
1. REMOVE FRONT LOWER ARM BUSH NO. 1
(a) Using a hammer and chisel, raise the flange of the bush diagonally as shown
in the illustration.
(b) Using SST, remove the lower arm bush.
SST: 09950-40011
09951-04010
09952-04010
09953-04020
09954-04010 ...
Satellite Radio Tuner
Components
COMPONENTS
ILLUSTRATION
Removal
REMOVAL
PROCEDURE
1. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
(See page )
2. REMOVE NO. 1 NAVIGATION WIRE
(a) Disconnect the 6 connectors to remove the No. 1 navigation wire.
...
