Toyota Tacoma (2015-2018) Service Manual: Initialization not Completed (C2177/77)

Toyota Tacoma (2015-2018) Service Manual / Tire And Wheel / Tire Pressure Warning System / Initialization not Completed (C2177/77)

DESCRIPTION

Initialization is necessary if one of the following occurs:

The tire pressure warning ECU and receiver is replaced.
A tire pressure warning valve and transmitter is replaced.
Tires with different standard tire pressures are installed.
The tires are rotated.
A new vehicle is delivered.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	Note
C2177/77	Initialization not Completed	All conditions below are met: During initialization Tire pressure warning valve and transmitter is not in stop mode Signal is not received from tire pressure warning valve and transmitter for 20 minutes or more Vehicle speed is more than 37 km/h (23 mph) for 20 minutes or more	Tire pressure warning valve and transmitter Wire harness or connector Tire pressure warning ECU and receiver	-

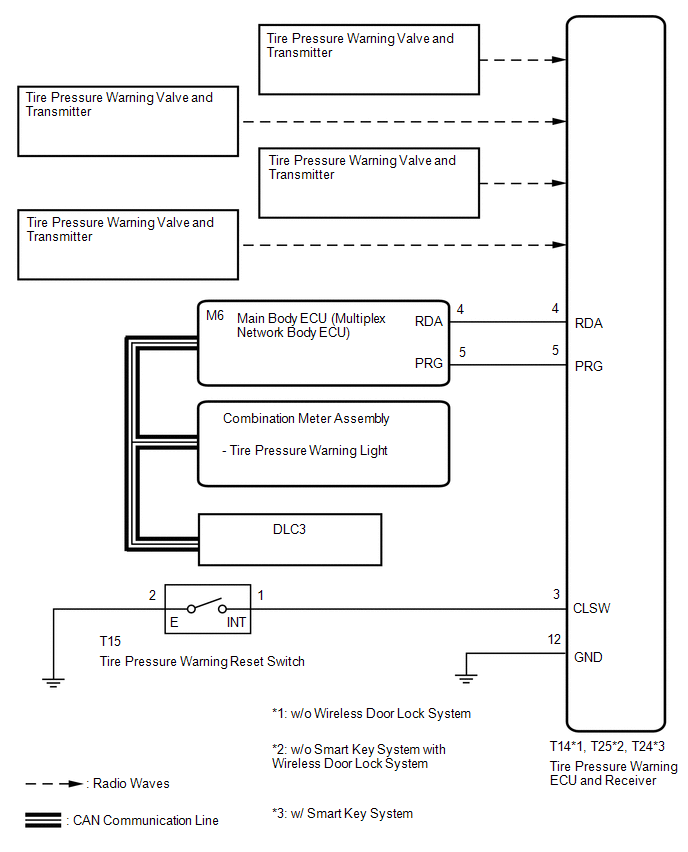

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

When replacing the tire pressure warning ECU and receiver, read the transmitter IDs stored in the old ECU using the Techstream and write them down before removal.
It is necessary to perform initialization (See page ) after registration (See page ) of the transmitter IDs into the tire pressure warning ECU and receiver if the ECU and/or one of the valve and transmitters has been replaced.

PROCEDURE

1.	CHECK FREQUENCY RECEIVING CONDITION

(a) Check that the following conditions are not met:

(1) Facilities or devices that use similar radio frequencies are located in the vicinity of the vehicle.

HINT:

If the vehicle is located in an area such as the one described above, the tire pressure warning light may illuminate after blinking for 1 minute due to interfering radio frequencies.

(2) Devices using similar radio frequencies are used in the vehicle.

OK:

Facilities or devices that use similar radio frequencies are not located in the vicinity of the vehicle.

HINT:

Radio wave transmissions may be interrupted due to the surroundings, or devices installed by the user.

CHECK IF ANY DEVICE IS INSTALLED BY USER

2.	PERFORM INITIALIZATION

(a) Perform initialization (See page ).

3.	CONFIRM TIRE INFLATION PRESSURE (DATA LIST)

(a) Turn the ignition switch off.

(b) Connect the Techstream to the DLC3.

(d) Turn the Techstream on.

(e) Enter the following menus: Chassis / Tire Pressure Monitor / Data List.

(f) Check the values by referring to the table below.

Tire Pressure Monitor

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
ID 1 Tire Inflation Pressure	ID1 tire inflation pressure/ min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm2, 0 psi), Relative pressure (Gauge) / 0 kPa (0 kgf/cm2, 0 psi) max.: Absolute pressure (abs) / 480 kPa (4.9 kgf/cm2, 70 psi), Relative pressure (Gauge) / 380 kPa (3.9 kgf/ cm2, 55 psi)	Actual tire inflation pressure	If N/A is displayed, data has not been received.*1
ID 2 Tire Inflation Pressure	ID2 tire inflation pressure/ min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm2, 0 psi), Relative pressure (Gauge) / 0 kPa (0 kgf/cm2, 0 psi) max.: Absolute pressure (abs) / 480 kPa (4.9 kgf/cm2, 70 psi), Relative pressure (Gauge) / 380 kPa (3.9 kgf/ cm2, 55 psi)	Actual tire inflation pressure	If N/A is displayed, data has not been received.*1
ID 3 Tire Inflation Pressure	ID 3 Tire Inflation Pressure/ min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm2, 0 psi), Relative pressure (Gauge) / 0 kPa (0 kgf/cm2, 0 psi) max.: Absolute pressure (abs) / 480 kPa (4.9 kgf/cm2, 70 psi), Relative pressure (Gauge) / 380 kPa (3.9 kgf/ cm2, 55 psi)	Actual tire inflation pressure	If N/A is displayed, data has not been received.*1
ID 4 Tire Inflation Pressure	ID 4 Tire Inflation Pressure/ min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm2, 0 psi), Relative pressure (Gauge) / 0 kPa (0 kgf/cm2, 0 psi) max.: Absolute pressure (abs) / 480 kPa (4.9 kgf/cm2, 70 psi), Relative pressure (Gauge) / 380 kPa (3.9 kgf/ cm2, 55 psi)	Actual tire inflation pressure	If N/A is displayed, data has not been received.*1

HINT:

*1: It may take a few minutes until the values are displayed.
When an "ID Tire Inflation Pressure" value has not changed, reset the tire pressure to the appropriate specified value and rotate the tire 90 to 270 degrees. Then rapidly release the tire pressure and recheck the value.

Result

Result	Proceed to
All tire pressure readings are equal to specified values.	A
Tire pressure values are not displayed.	B

END

GO TO DTC (C2121/21 TO C2125/25)

Lost Communication with Brake System Control Module (U0129/29)

DESCRIPTION The tire pressure warning ECU and receiver receives signals from the skid control ECU (brake actuator assembly) via the CAN communication system. DTC No. DTC Dete ...

Tire Pressure Monitor ECU Communication Stop (C2179/79)

DESCRIPTION The main body ECU (multiplex network body ECU) sends signals to the tire pressure warning ECU and receiver via a direct line. DTC No. Detection Item DT ...
