Toyota Tacoma 2015-2018 Service Manual: Components

COMPONENTS

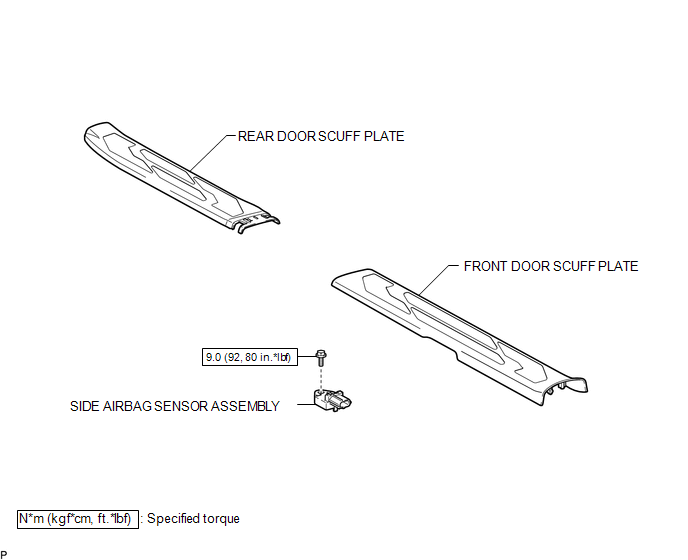

ILLUSTRATION

On-vehicle Inspection
Side Airbag Sensor(for Access Cab)
...

On-vehicle Inspection
ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT SIDE AIRBAG SENSOR ASSEMBLY (for Vehicle not Involved in Collision) (a) Perform a Diagnostic System Check (See page ). 2. INSPECT SIDE AIRBAG SENSOR AS ...
