Toyota Tacoma (2015-2018) Service Manual: Components
COMPONENTS

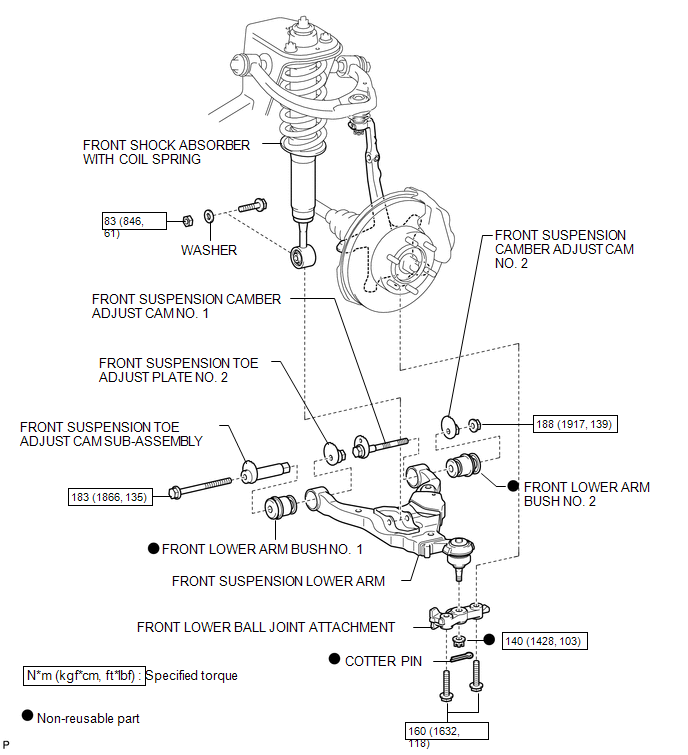

ILLUSTRATION
Disassembly
DISASSEMBLY
PROCEDURE
1. REMOVE FRONT LOWER ARM BUSH NO. 1
(a) Using a hammer and chisel, raise the flange of the bush diagonally as shown
in the illustration.
(b) Using SST, remove ...
