PROCEDURE
|
1. |
CHECK CD |
|

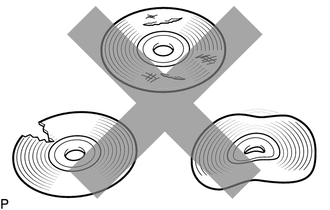

(a) Check that the CD is not deformed or cracked. OK: No deformation or cracks on the CD |
|
| NG | |
CD IS FAULTY |
|
|
2. |
CHECK CD |
|

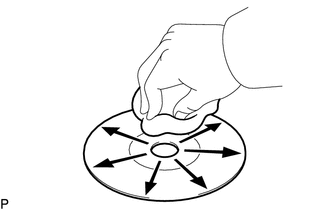

(a) Check the CD. OK: The CD is clean. NOTICE: Do not use a conventional record cleaner or anti-static preservative. HINT: If dirt is on the CD surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction. |
|
| NG | |
CLEAN CD |
|
|
3. |
REPLACE CD AND RECHECK |
(a) Replace CD with a known good one and check that the malfunction disappears.
OK:
Malfunction disappears.
| OK | |
CD WAS FAULTY |
|
|
4. |
CHECK NAVIGATION RECEIVER ASSEMBLY |
(a) Check the navigation receiver assembly installation condition.
(1) Check that the navigation receiver assembly is properly installed.
OK:
The navigation receiver assembly is properly installed.
| OK | |
REPLACE NAVIGATION RECEIVER ASSEMBLY |
| NG | |
REINSTALL NAVIGATION RECEIVER ASSEMBLY |
