Toyota Tacoma 2015-2018 Service Manual: Air Inlet Control Servo Motor

Toyota Tacoma 2015-2018 Service Manual / Air Conditioning / Air Inlet Control Servo Motor

Inspection

INSPECTION

PROCEDURE

1. INSPECT AIR INLET CONTROL SERVO MOTOR

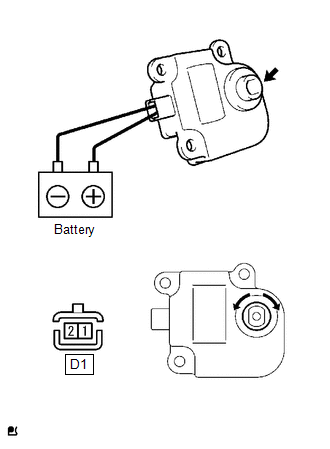

(a) Inspect the servo motor operation.

(1) Connect the positive (+) lead from the battery to terminal 1 (FRS) and negative (-) lead to terminals 2 (REC), then check that the shaft rotates clockwise smoothly.

(2) Connect the positive (+) lead from the battery to terminal 2 (REC) and negative (-) lead to terminal 1 (FRS) then check that the shaft rotates counterclockwise smoothly.

If the operations are not as specified, replace the air control servo motor.

Installation
INSTALLATION PROCEDURE 1. INSTALL AIR CONDITIONING UNIT ASSEMBLY (a) Temporary install the air conditioning unit assembly. (b) Insert the bracket hook into the holes of the reinforcement bracket, ...

Air Mix Control Servo Motor
Inspection INSPECTION PROCEDURE 1. INSPECT AIR MIX CONTROL SERVO MOTOR (for Manual Air Conditioning System) (a) Inspect the servo motor operation. Text in Illustration ...
