Toyota Tacoma (2015-2018) Service Manual: Terminals Of Ecu
TERMINALS OF ECU

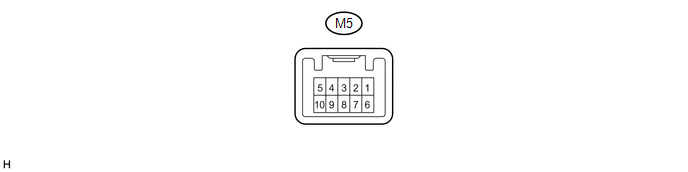

1. MOBILE WIRELESS CHARGER CRADLE ASSEMBLY
|
Tester Connection |
Wiring Color |
Terminal Description |
Condition |
Specified Condition |
|---|---|---|---|---|
|
M5-1 (ACC) - M5-5 (PGND) |
GR - W-B |
Power source (ACC) |
Ignition Switch ON (ACC) |
11 to 14 V |
|
Ignition Switch off |
Below 1 V |
|||
|
M5-5 (PGND) - Body ground |
W-B - Body ground |
Ground |
Always |
Below 1 V |
|
M5-9 (TAIL) - M5-5 (PGND) |
G - W-B |
Illumination signal |
Light control switch off |
Below 1 V |
|
Light control switch in tail or head position |
11 to 14 V |
|||
|
M5-10 (DIS) - Body ground |
Y - Body ground |
Smart key system status signal |
For 1500 ms after turning ignition switch from off to on (IG)*1 |
4.4 to 6.5 V |
|
Being charged |
Below 1 V |
|||
|
Charging suspended due to smart key system status*2 |
4.4 to 6.5 V |
- *1: The mobile wireless charger cradle assembly checks the status signal for 1500 ms when the ignition switch is turned from off to on (IG). If a status signal voltage of less than 1 V continues for 400 ms or more during the check, the mobile wireless charger cradle assembly judges that the status signal is interrupted, blinks the indicators and stops the operation until the ignition switch is turned off then on (IG) again.
- *2: For the status of the smart key system when charging is stopped
temporarily, refer to System Description (See page
.gif)
).
