Toyota Tacoma (2015-2018) Service Manual: Parts Location

PARTS LOCATION

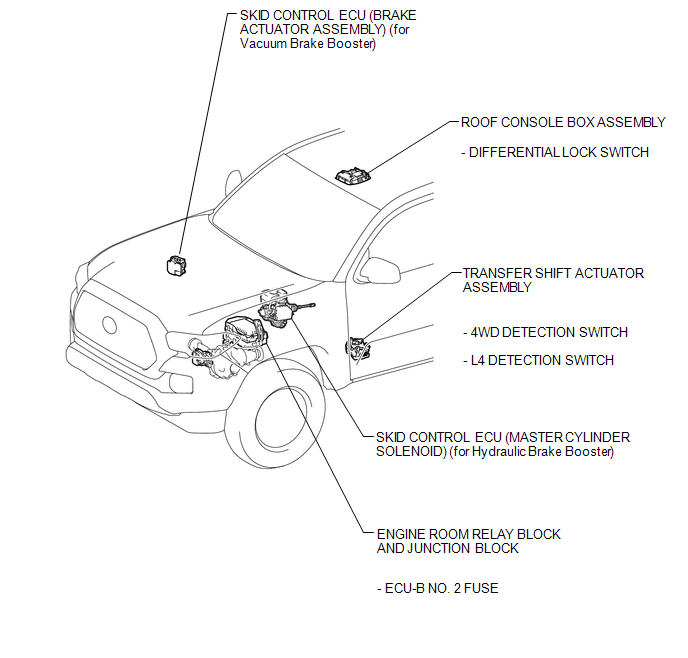

ILLUSTRATION

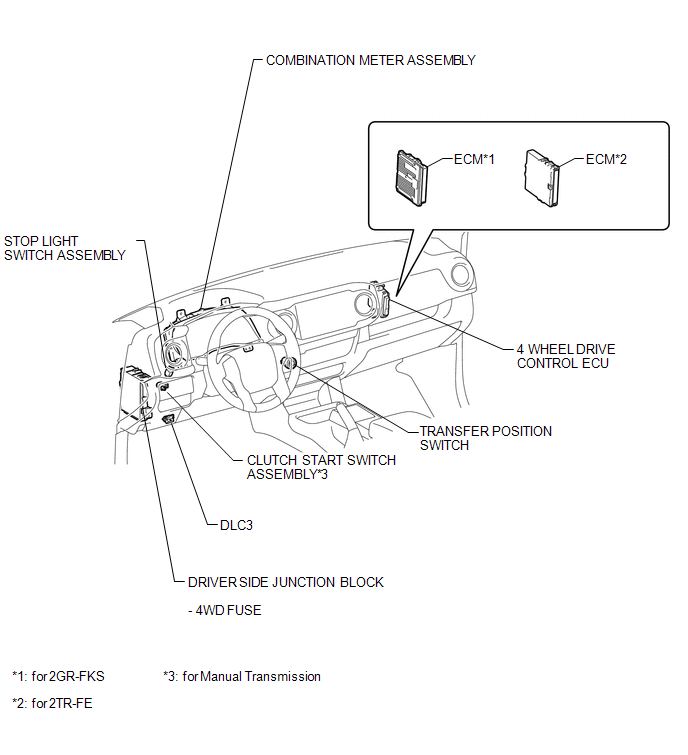

ILLUSTRATION

ILLUSTRATION
