Toyota Tacoma 2015-2018 Service Manual: Inspection

INSPECTION

PROCEDURE

1. INSPECT TRANSMISSION WIRE

(a) Measure the resistance according to the value(s) in the table below.

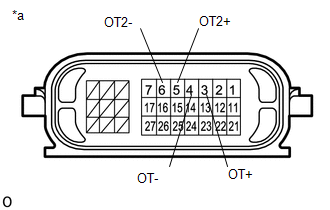

Text in Illustration

*a

Component without harness connected

(Transmission Wire)

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 (OT+) - 4 (OT-)

Always

79 Ω to 156 kΩ

5 (OT2+) - 6 (OT2-)

Always

25 Ω to 156 kΩ

3 (OT+) - Body ground

5 (OT2+) - Body ground

Always

10 kΩ or higher

4 (OT-) - Body ground

6 (OT2-) - Body ground

Always

10 kΩ or higher

HINT:

If the resistance is out of the specified range at any of the ATF temperatures shown in the table below, the driveability of the vehicle may decrease.

Standard Resistance:

ATF Temperature

Specified Condition

10°C (50°F)

5 to 8 kΩ

25°C (77°F)

2.5 to 4.5 kΩ

110°C (230°F)

0.22 to 0.28 kΩ

If the result is not as specified, replace the transmission wire.
