Toyota Tacoma 2015-2018 Service Manual: Components

COMPONENTS

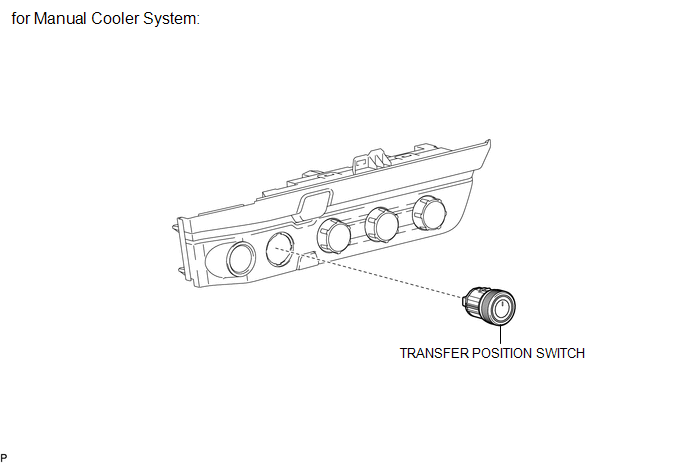

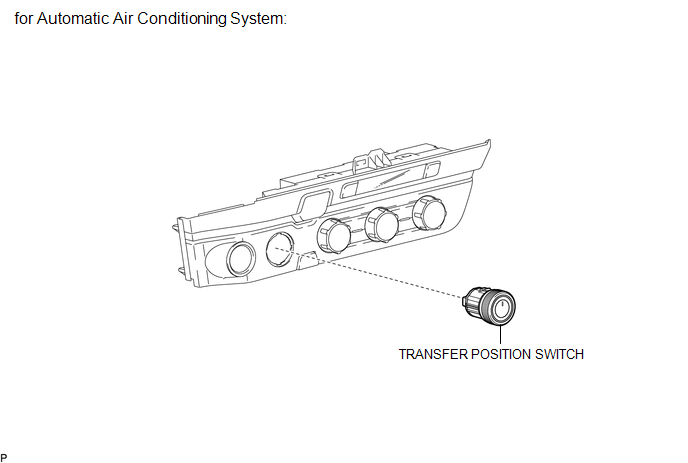

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

On-vehicle Inspection
4wd Control Switch
...

On-vehicle Inspection
ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT INDICATOR LIGHT (a) Inspect the 4HI Indicator Light: (1) Start the engine. (2) Change the 4WD control switch from 2WD to 4H. (3) Check the 4HI indicato ...

Other materials:

Fail-safe Chart
FAIL-SAFE CHART 1. FAIL SAFE OPERATION If there is a problem with any sensor signals or hydraulic brake booster systems, the skid control ECU prohibits the power supply to the actuator in the hydraulic brake booster and informs the ECM of VSC system failure. The hydraulic brake b ...

Power Supply Drive Circuit (C1257)
DESCRIPTION The motor relay (semiconductor relay) is built into the hydraulic brake booster and drives the pump motor based on a signal from the skid control ECU (master cylinder solenoid). DTC No. DTC Detecting Condition Trouble Areas C1257 ...

Brake Switch "B" Circuit Short to Battery (P070312)
DESCRIPTION The purpose of this circuit is to prevent the engine from stalling while driving in lock-up when the brakes are suddenly applied. When the brake pedal is depressed, this switch sends a signal to the ECM. Then the ECM cancels the operation of the lock-up clutch while braking is in p ...
