Toyota Tacoma 2015-2018 Service Manual: Components

COMPONENTS

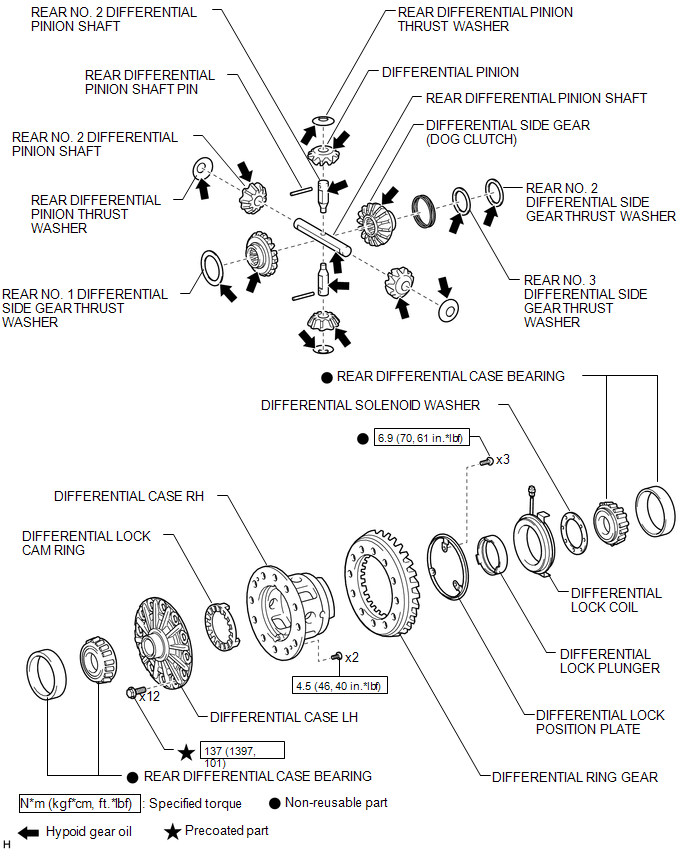

ILLUSTRATION

HINT:

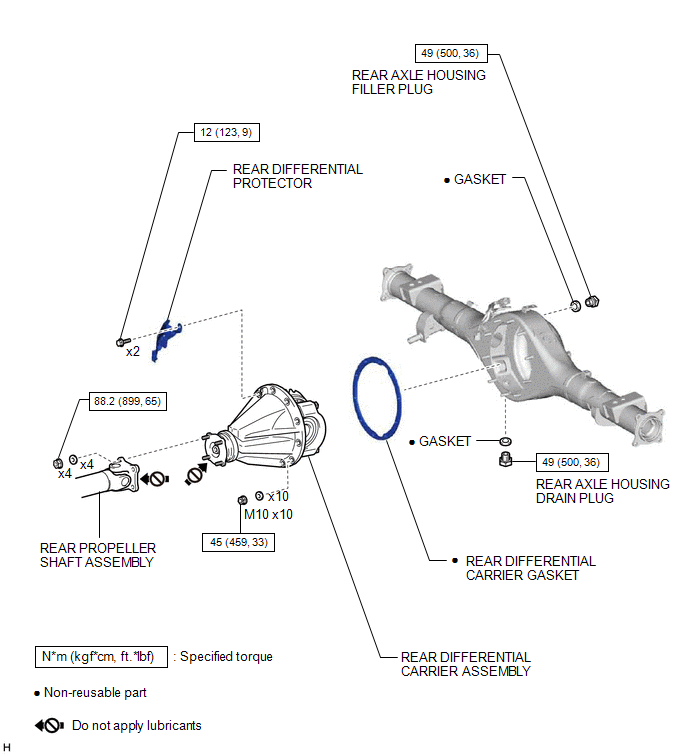

The following specifications are for BD22AN (w/ Differential Lock). BD22AN differentials are equipped with M10 rear differential carrier to rear axel housing fasteners.

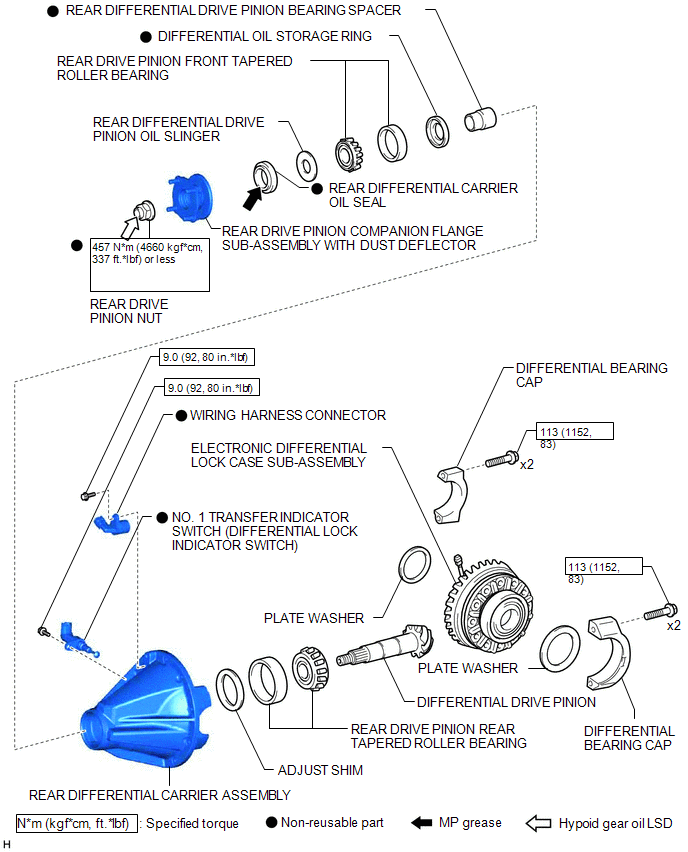

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

Removal
Bd22an Differential Carrier Assembly(w/ Differential Lock)
...

Removal
REMOVAL CAUTION / NOTICE / HINT Text in Illustration *a Object Exceeding Weight Limit of Transmission Jack Be sure to perform this procedure with several peo ...
