Toyota Tacoma 2015-2018 Service Manual: Components

COMPONENTS

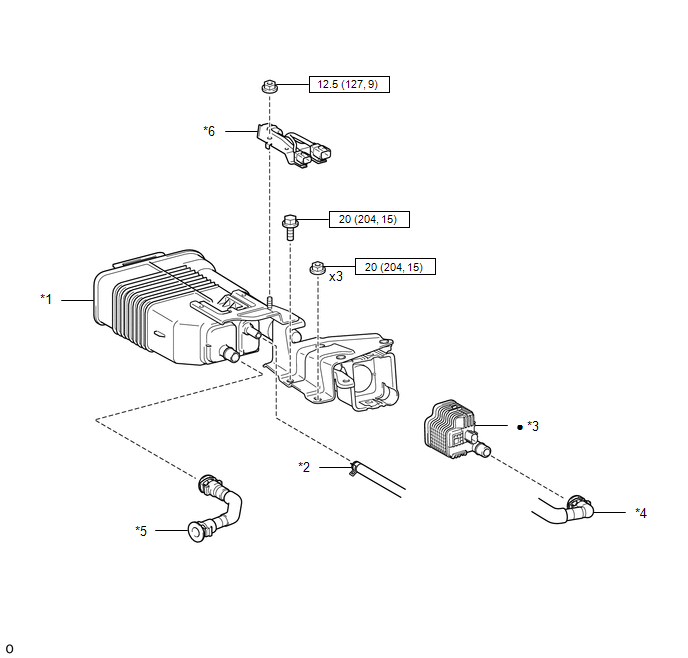

ILLUSTRATION

*1

CHARCOAL CANISTER ASSEMBLY

*2

CHARCOAL CANISTER FUEL HOSE

*3

CHARCOAL CANISTER LEAK DETECTION PUMP SUB-ASSEMBLY

*4

FUEL TANK VENT HOSE

*5

FUEL TANK VENT HOSE SUB-ASSEMBLY

*6

WIRE HARNESS BRACKET

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Canister
...

Removal
REMOVAL PROCEDURE 1. REMOVE FUEL TANK ASSEMBLY Click here 2. DISCONNECT CHARCOAL CANISTER FUEL HOSE (a) Loosen the hose clip and disconnect the charcoal canister fuel hose. ...
