Toyota Tacoma 2015-2018 Service Manual: Components

COMPONENTS

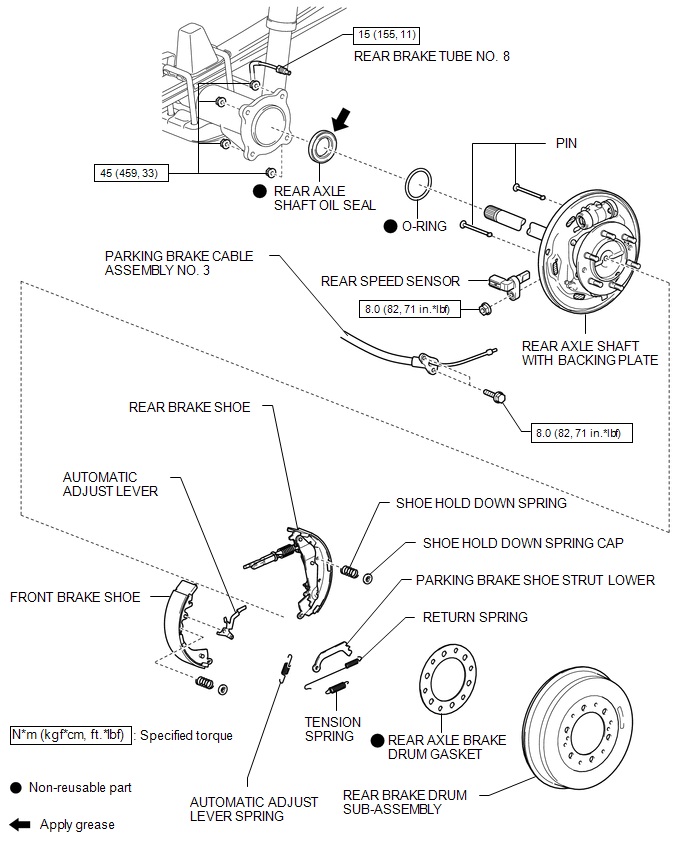

ILLUSTRATION

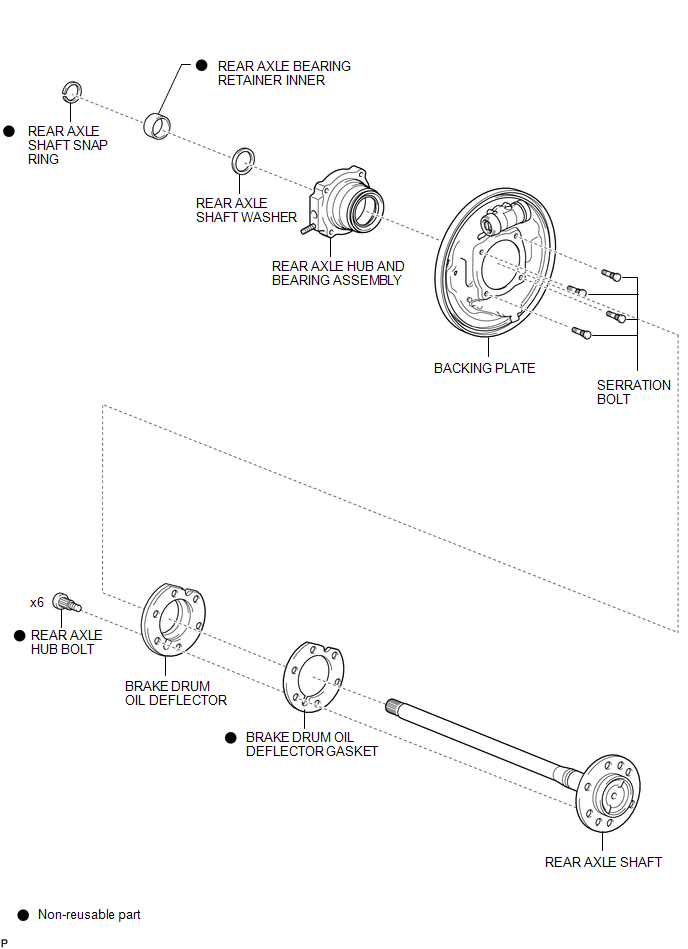

ILLUSTRATION

ILLUSTRATION

Disassembly
Rear Axle Shaft
...

Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE REAR AXLE SHAFT SNAP RING (a) Using a snap ring expander, remove the snap ring. 2. REMOVE REAR AXLE SHAFT (a) Using SST and press, remove the rear axle shaft. ...
