Toyota Tacoma 2015-2018 Service Manual: Certification ECU Communication Stop Mode

DESCRIPTION

Detection Item

Symptom

Trouble Area

Certification ECU Communication Stop Mode

Either condition is met:

  • Communication stop for "Certification (Smart)" is indicated on the "Communication Bus Check" screen of the Techstream.

    Click here

  • Communication system DTCs (DTCs that start with U) that correspond to "Certification ECU Communication Stop Mode" in "DTC Combination Table" are output.

    Click here

  • Certification ECU (Smart key ECU assembly) branch line or connector
  • Power source circuit of certification ECU (smart key ECU assembly)
  • Certification ECU (Smart key ECU assembly) ground circuit
  • Certification ECU (Smart key ECU assembly)

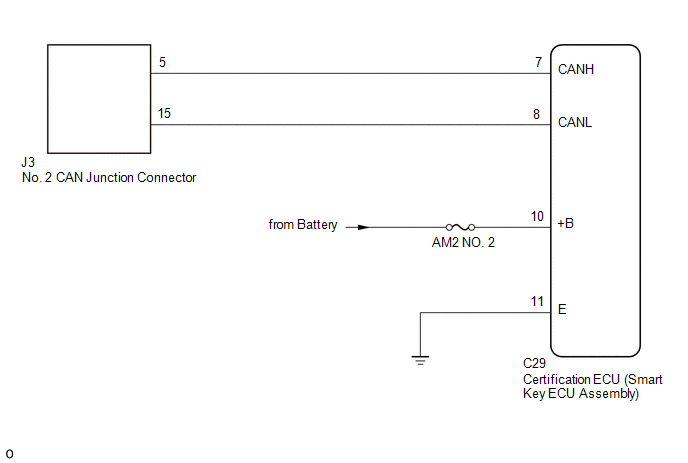

WIRING DIAGRAM

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

NOTICE:

  • Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

    Click here

  • Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.
  • After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click here

  • Some parts must be initialized and set when replacing or removing and installing parts.

    Click here

  • After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

    DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

  • After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

    Click here

  • Inspect the fuses for circuits related to this system before performing the following procedure.
  • If the certification ECU (smart key ECU assembly) is replaced, refer to Registration.

    Click here

HINT:

  • Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.
  • When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.

PROCEDURE

1.

CHECK FOR OPEN IN CAN BUS LINES (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) BRANCH LINE)

(a) Disconnect the cable from the negative (-) battery terminal.

(b) Disconnect the certification ECU (smart key ECU assembly) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C29-7 (CANH) - C29-8 (CANL)

Cable disconnected from negative (-) battery terminal

54 to 69 Ω

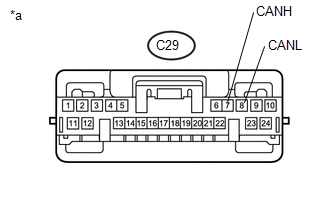

Text in Illustration

*a

Front view of wire harness connector

(to Certification ECU (Smart Key ECU Assembly))

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))

OK

2.

CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C29-11 (E) - Body ground

Cable disconnected from negative (-) battery terminal

Below 1 Ω

(b) Connect the cable to the negative (-) battery terminal.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

C29-10 (+B) - Body ground

Always

11 to 14 V

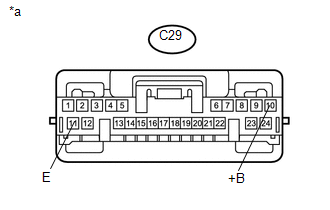

Text in Illustration

*a

Front view of wire harness connector

(to Certification ECU (Smart Key ECU Assembly))

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
