Toyota Tacoma 2015-2018 Service Manual: Towing Tail Relay

Inspection

INSPECTION

PROCEDURE

1. INSPECT TOWING TAIL RELAY

(a) Check the resistance.

(a) Check the resistance.

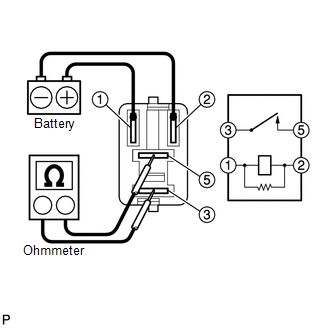

(1) Using an ohmmeter, measure the resistance between the terminals.

Standard:

Tester Connection

Specified Condition

3-5

10 kΩ or higher

3-5

Below 1 Ω

(When battery voltage applied to terminals 1 and 2)

If the result is not as specified, replace the towing tail relay.

Stop Light Switch
Components COMPONENTS ILLUSTRATION Inspection INSPECTION PROCEDURE 1. INSPECT STOP LIGHT SWITCH (a) Check the resistance. (1) Measure the resistance using an ohmmeter, and check the re ...

Trailer Socket
Components COMPONENTS ILLUSTRATION Removal REMOVAL PROCEDURE 1. REMOVE TRAILER SOCKET (a) Disconnect the connector. (b) Di ...
