TERMINALS OF ECU

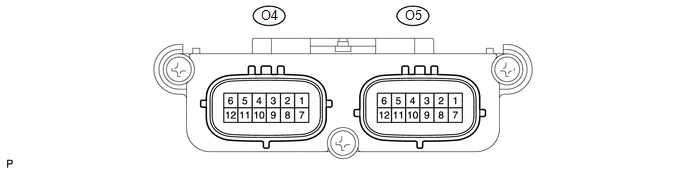

1. OCCUPANT DETECTION ECU
|
		 Symbols (Terminal No.)  |

		 Wiring Color  |

		 Terminal Description  |

		 Condition  |

		 Specification  |

|---|---|---|---|---|
|
		 +B (O5-1) - GND (O5-3)  |

		 R - W-B  |

		 Battery  |

		 Ignition switch on  |

		 10 to 14 V  |

|
		 DIA (O5-2) - GND (O5-3)  |

		 W - W-B  |

		 Diagnosis (DLC3)  |

		 Ignition switch on  |

		 Pulse generation  |

|
		 GND (O5-3) - Body ground  |

		 W-B - Body ground  |

		 Ground  |

		 Always  |

		 Below 1 Ω  |

|
		 FSR- (O5-4) - GND (O5-3)  |

		 B - W-B  |

		 Airbag sensor assembly communication line (-)  |

		 Always  |

		 Below 1 Ω  |

|
		 BGND (O5-5) - GND (O5-3)  |

		 P-G - W-B  |

		 Passenger side buckle switch ground line  |

		 Always  |

		 Below 1 Ω  |

|
		 IG (O5-7) - GND (O5-3)  |

		 BE - W-B  |

		 Power source (IGN Fuse)  |

		 Ignition switch on  |

		 10 to 14 V  |

|
		 FSR+ (O5-8) - FSR- (O5-4)  |

		 W - B  |

		 Airbag sensor assembly communication line  |

		 Ignition switch on  |

		 Pulse generation  |

|
		 BSW (O5-9) - BGND (O5-5)  |

		 G - P-G  |

		 Passenger side buckle switch line  |

		 Buckle switch ON Buckle switch OFF  |

		 Pulse generation  |

|
		 SGD1 (O4-1) - GND (O5-3)  |

		 L - W-B  |

		 Occupant classification sensor front LH ground line  |

		 Always  |

		 Below 1 Ω  |

|
		 SGD2 (O4-2) - GND (O5-3)  |

		 BE - W-B  |

		 Occupant classification sensor front RH ground line  |

		 Always  |

		 Below 1 Ω  |

|
		 SGD3 (O4-3) - GND (O5-3)  |

		 P-G - W-B  |

		 Occupant classification sensor rear LH ground line  |

		 Always  |

		 Below 1 Ω  |

|
		 SGD4 (O4-4) - GND (O5-3)  |

		 B-R - W-B  |

		 Occupant classification sensor rear RH ground line  |

		 Always  |

		 Below 1 Ω  |

|
		 SVC1 (O4-11) - SGD1 (O4-1)  |

		 B-L - L  |

		 Occupant classification sensor front LH power supply line  |

		 Ignition switch on, a load is applied to occupant classification sensor front LH  |

		 4.5 to 5.1 V  |

|
		 SVC2 (O4-12) - SGD2 (O4-2)  |

		 LG-B - BE  |

		 Occupant classification sensor front RH power supply line  |

		 Ignition switch on, a load is applied to occupant classification sensor front RH  |

		 4.5 to 5.1 V  |

|
		 SVC3 (O4-5) - SGD3 (O4-3)  |

		 B -P-G  |

		 Occupant classification sensor rear LH power supply line  |

		 Ignition switch on, a load is applied to occupant classification sensor rear LH  |

		 4.5 to 5.1 V  |

|
		 SVC4 (O4-6) - SGD4 (O4-4)  |

		 GR-L - B-R  |

		 Occupant classification sensor rear RH power supply line  |

		 Ignition switch on, a load is applied to occupant classification sensor rear RH  |

		 4.5 to 5.1 V  |

|
		 SIG1 (O4-7) - SGD1 (O4-1)  |

		 G - L  |

		 Occupant classification sensor front LH signal line  |

		 Ignition switch on, a load is applied to occupant classification sensor front LH  |

		 Pulse generation  |

|
		 SIG2 (O4-8) - SGD2 (O4-2)  |

		 R-L - BE  |

		 Occupant classification sensor front RH signal line  |

		 Ignition switch on, a load is applied to occupant classification sensor front RH  |

		 Pulse generation  |

|
		 SIG3 (O4-9) - SGD3 (O4-3)  |

		 R-B - P-G  |

		 Occupant classification sensor rear LH signal line  |

		 Ignition switch on, a load is applied to occupant classification sensor rear LH  |

		 Pulse generation  |

|
		 SIG4 (O4-10) - SGD4 (O4-4)  |

		 L-R - B-R  |

		 Occupant classification sensor rear RH signal line  |

		 Ignition switch on, a load is applied to occupant classification sensor rear RH  |

		 Pulse generation  |
