Toyota Tacoma 2015-2018 Service Manual: Removal

REMOVAL

PROCEDURE

1. REMOVE RADIATOR GRILLE

(a) w/ Toyota Safety Sense P

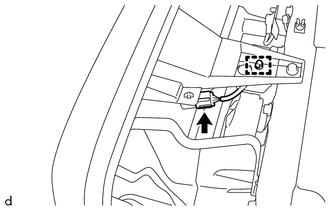

(1) Disconnect the connector.

(2) Disengage the clamp.

(b) Put protective tape around the radiator grille.

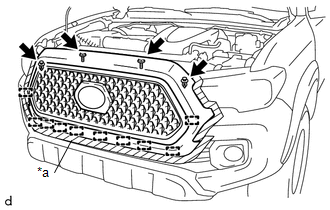

*a

Protective Tape

(c) Remove the 2 screws.

(d) Remove the 2 clips.

(e) Disengage the 10 guides to remove the radiator grille.

Components
COMPONENTS ILLUSTRATION *1 RADIATOR GRILLE - - ILLUSTRATION *A for Type A *B for Type B ...

Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE MILLIMETER WAVE RADAR WIRE (w/ Toyota Safety Sense P) Click here 2. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Toyota Safety Sense P) Click here 3. REMO ...
