REMOVAL
PROCEDURE
1. REMOVE REFRIGERANT FROM REFRIGERATION SYSTEM
2. REMOVE AIR CONDITIONER PRESSURE SENSOR

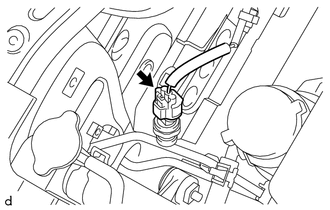

(a) Disconnect the connector. |
|

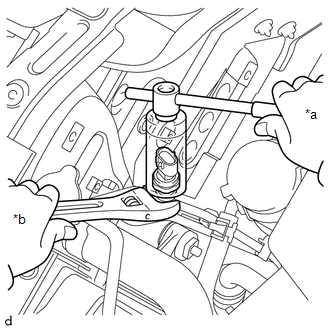

(b) Using a 27 mm deep socket wrench, remove the air conditioner pressure sensor. Text in Illustration
NOTICE: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter. |
|
