■ Shifting the shift lever

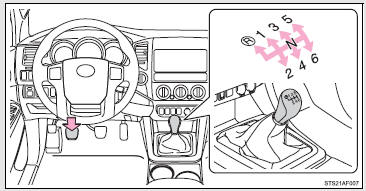

6-speed models
Fully depress the clutch pedal before operating the shift lever, and then release it slowly.

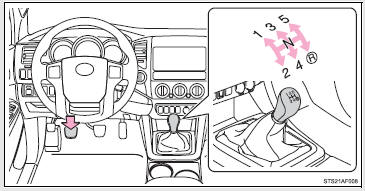

5-speed models
Fully depress the clutch pedal before operating the shift lever, and then release it slowly.
■Maximum allowable speed
Observe the following maximum allowable speeds in each gear when maximum acceleration is necessary.

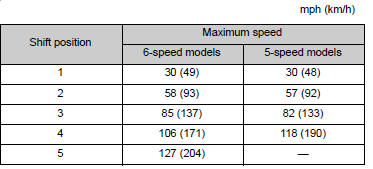

2WD models except PreRunner

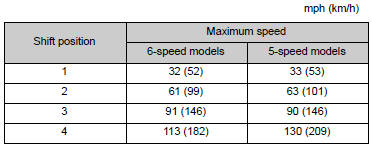

PreRunner

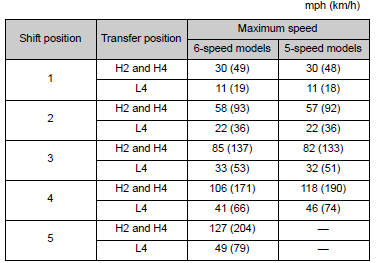

4WD models
■Reverse warning buzzer (6-speed models only)
When shifting into R, a buzzer will sound to inform the driver that the shift lever is in R.
