Toyota Tacoma (2015-2018) Service Manual: Inspection

INSPECTION

PROCEDURE

1. INSPECT REAR SPEAKER ASSEMBLY (w/o Amplifier Box Speaker Assembly)

(a) Measure the resistance according to the value(s) in the table below.

(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:

Tester Connection

Condition

Specified Condition

1 - 2

Always

3.2 to 4.8 Ω

If the result is not as specified, replace the rear speaker assembly.

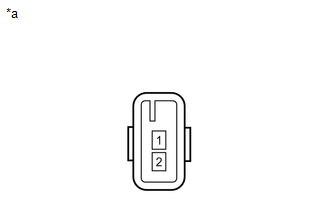

Text in Illustration

*a

Component without harness connected

(Rear Speaker Assembly)

2. INSPECT REAR SPEAKER ASSEMBLY (w/ Amplifier Box Speaker Assembly)

(a) Measure the resistance according to the value(s) in the table below.

(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:

Tester Connection

Condition

Specified Condition

1 - 2

Always

1.5 to 2.1 Ω

If the result is not as specified, replace the rear speaker assembly.

Text in Illustration

*a

Component without harness connected

(Rear Speaker Assembly)
