INSPECTION

PROCEDURE

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard resistance:

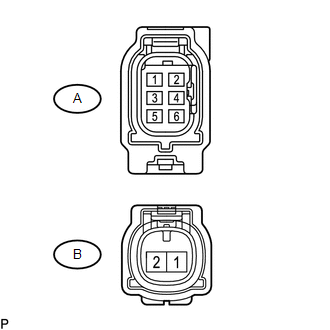

Tester Connection	Condition	Specified Condition
A-3 - B-2	Always	10 kΩ or higher
A-3 - B-1	Always	Below 1 Ω
A-4 - B-1	Always	10 kΩ or higher
A-4 - B-2	Always	Below 1 Ω

If the result is not as specified, replace the front seat inner belt assembly LH.
