Toyota Tacoma (2015-2018) Service Manual: Disposal
DISPOSAL
CAUTION / NOTICE / HINT
HINT:
The tire pressure warning valve and transmitter is powered by a lithium battery. When disposing of the tire pressure warning valve and transmitter, remove the battery and dispose of it correctly.
PROCEDURE
1. DISPOSE OF TIRE PRESSURE WARNING VALVE AND TRANSMITTER
|

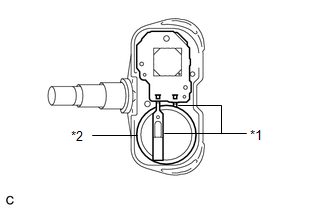

(a) Cut the 2 terminals that connect the battery to the base board to remove the battery. Text in Illustration
HINT: The battery and base board are covered with silicone. |
|
