Toyota Tacoma (2015-2018) Service Manual: Display does not Dim when Light Control Switch is Turned ON

Toyota Tacoma (2015-2018) Service Manual / Navigation / Multi Info Display / Navigation System / Display does not Dim when Light Control Switch is Turned ON

PROCEDURE

1.

CHECK IMAGE QUALITY SETTING

(a) Display the "Display Settings" screen.

(b) Turn the light control switch to the tail or head position.

(c) Check if "Day Mode" on the display adjustment screen is on.

OK:

"Day Mode" setting is off

NG

TURN "Day Mode" SETTING OFF

OK

2.

CHECK VEHICLE SIGNAL (OPERATION CHECK)

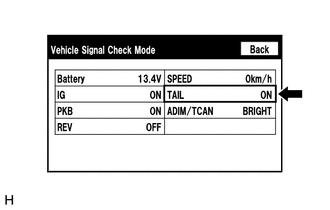

(a) Enter the "Vehicle Signal Check Mode" screen. Refer to Check Vehicle Signal in Operation Check (See page ).

(b) Check that the display changes between ON and OFF according to the light control switch operation.

OK:

Light Control Switch

Display

Tail or head

ON

Off

OFF

HINT:

The display is updated once per second. It is normal for the display to lag behind the actual switch operation.

OK

REPLACE NAVIGATION RECEIVER ASSEMBLY

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
