Toyota Tacoma 2015-2018 Service Manual: Components

COMPONENTS

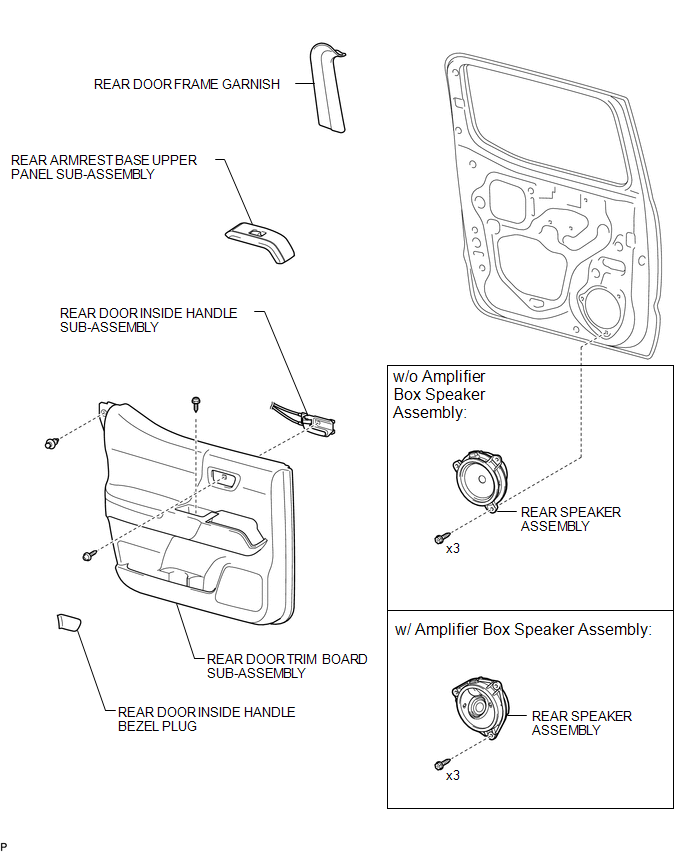

ILLUSTRATION

Removal
Rear Door Speaker(for Double Cab)
...

Removal
REMOVAL CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH and LH sides. The procedure listed below is for the LH side. PROCEDURE 1. REMOVE REAR DOOR FRAME GARNISH ...
