Toyota Tacoma (2015-2018) Service Manual: Components
COMPONENTS

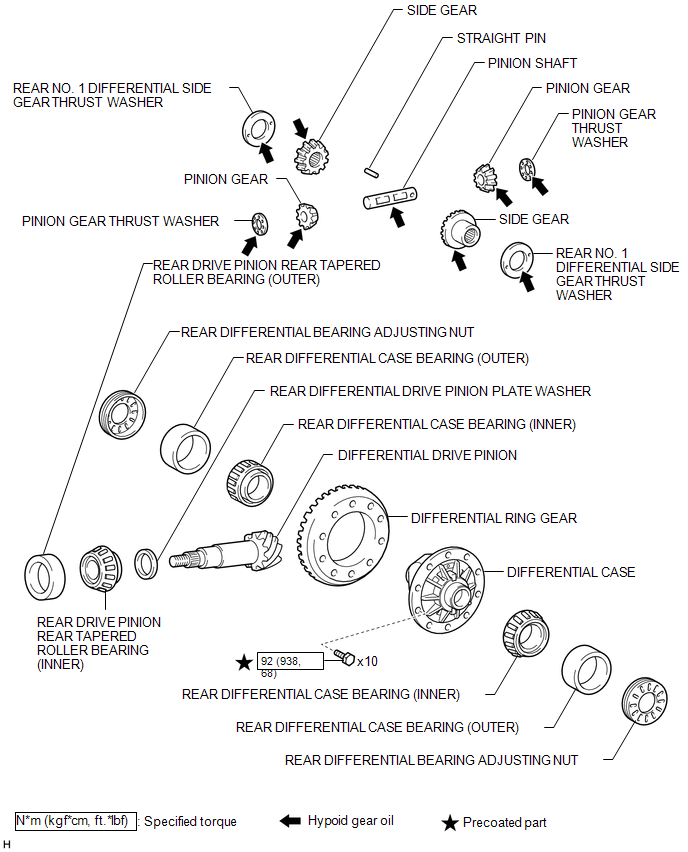

ILLUSTRATION
HINT:
The following specifications are for BD20D (w/o Differential Lock). BD20D differentials are equipped with M8 rear differential carrier to rear axel housing fasteners.

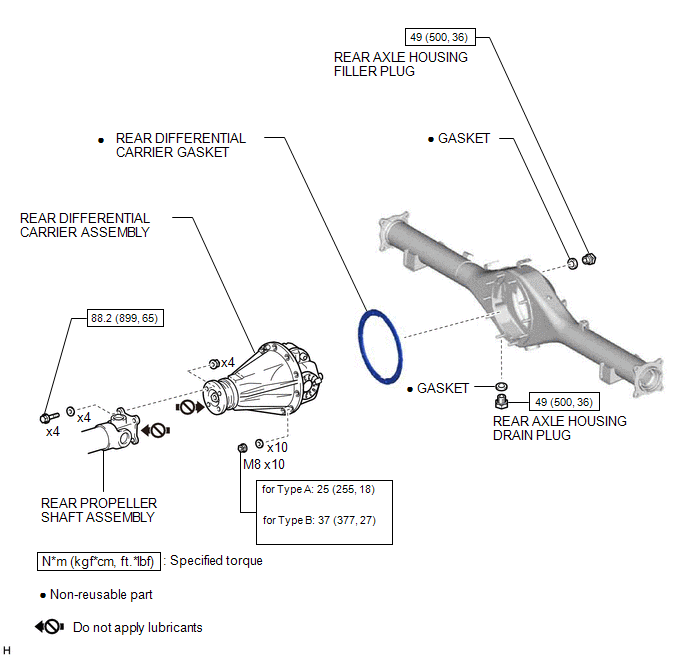

ILLUSTRATION
ILLUSTRATION
Removal
REMOVAL
CAUTION / NOTICE / HINT
Text in Illustration
*a
Object Exceeding Weight Limit of Transmission Jack
Be sure to perform this procedure with several peo ...
