Toyota Tacoma 2015-2018 Service Manual: Reassembly

REASSEMBLY

PROCEDURE

1. INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY

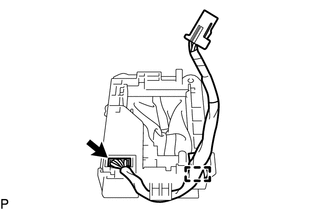

(a) Connect the connector to install the indicator light wire sub-assembly to the shift position indicator.

(b) Attach the clamp to install the indicator light wire sub-assembly to the shift position indicator.

2. INSTALL SHIFT POSITION INDICATOR

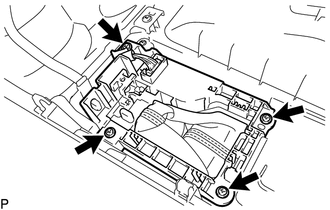

(a) Install the shift position indicator to the console upper panel sub-assembly with the 4 screws.

3. INSTALL SHIFT LOCK RELEASE BUTTON COVER

(a) Attach the 2 claws to install the shift lock release button cover to the console upper panel sub-assembly.

Installation
INSTALLATION PROCEDURE 1. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY (a) Install the transmission floor shift assembly to the vehicle body with the 4 bolts. Torque: 14 N·m {143 kgf·cm, 10 ft ...

Speed Sensor
Components COMPONENTS ILLUSTRATION Removal REMOVAL PROCEDURE 1. REMOVE TRANSMISSION REVOLUTION SENSOR (NT) (a) Disconnect the transmission revolution sensor (NT) connector. ...
