Toyota Tacoma 2015-2018 Service Manual: Inspection

INSPECTION

PROCEDURE

1. INSPECT TIE ROD END SUB-ASSEMBLY

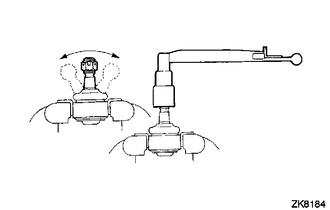

(a) Flip the ball joint stud back and forth 5 times as shown in the illustration

(a) Flip the ball joint stud back and forth 5 times as shown in the illustration before installing the nut.

(b) Using a torque wrench, turn the nut continuously at a rate of 2 to 4 seconds per turn and check the torque reading on the 5th turn.

Torque:

0.49-3.43 N·m {5.0-35.0 kgf·cm, 4.34-30.36 in·lbf}

2. INSPECT POWER STEERING RACK

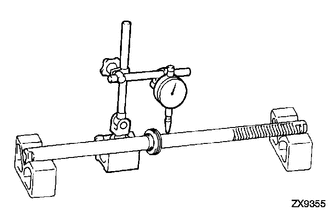

(a) Using a dial indicator, check the power steering rack for runout, teeth wear

(a) Using a dial indicator, check the power steering rack for runout, teeth wear and damage.

Maximum runout:

0.3 mm (0.012 in.)

If necessary, replace the power steering link assembly.

(b) Check the back surface for wear and damage.

If necessary, replace the power steering link assembly.
