Toyota Tacoma 2015-2018 Service Manual: Components

COMPONENTS

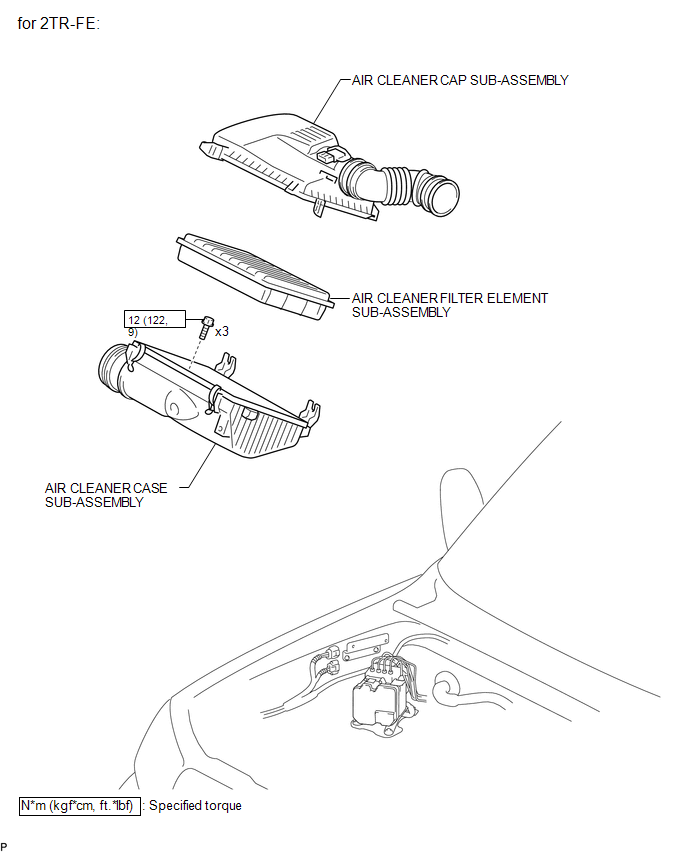

ILLUSTRATION

ILLUSTRATION

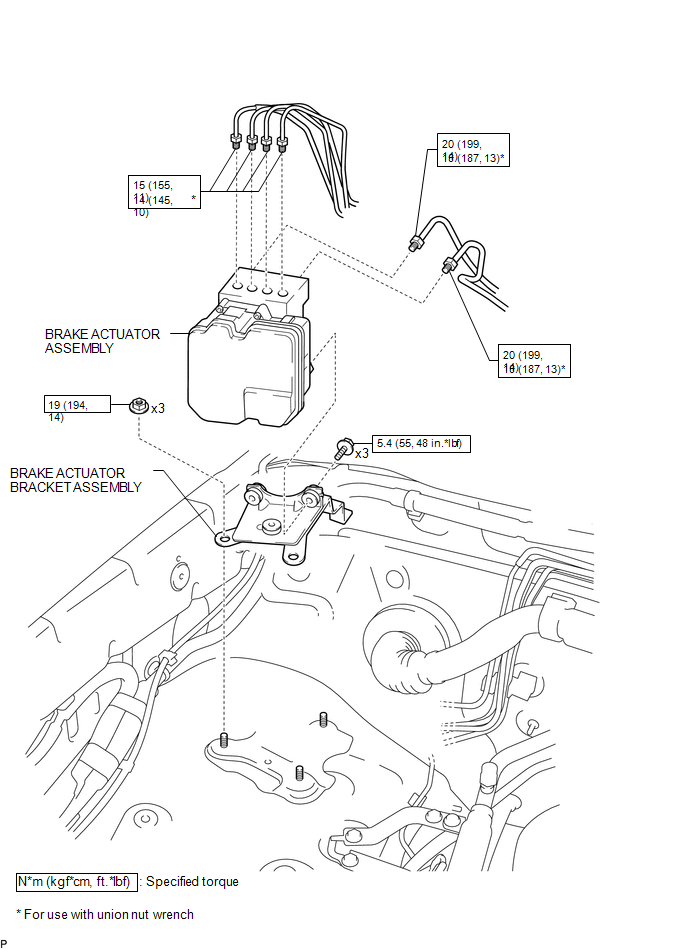

ILLUSTRATION

On-vehicle Inspection
Brake Actuator
...

On-vehicle Inspection
ON-VEHICLE INSPECTION PROCEDURE 1. CONNECT TECHSTREAM (a) Warm up the engine. (b) Turn the ignition switch to off. (c) Connect the Techstream to the DLC3. (d) Turn the ignition switch to ON. (e ...

Other materials:

Removal
REMOVAL PROCEDURE 1. REMOVE FRONT FENDER MUDGUARD (w/ Mudguard) Click here 2. REMOVE FRONT FENDER WHEEL OPENING MOULDING (w/ Over Fender) Click here 3. REMOVE FRONT NO. 1 WHEEL OPENING EXTENSION PAD (w/ Front Spoiler) (a) Remove 9 screws and front No. 1 wheel opening extension ...

Terminals Of Ecu
TERMINALS OF ECU 1. CHECK MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) Text in Illustration *1 Main Body ECU (Multiplex Network Body ECU) - - (a) Disconnect the driver side junction block and main body ECU (multiplex network body ECU) connect ...

Open in Bus 5 Main Bus Line
DESCRIPTION There may be an open circuit in one of the CAN main bus lines when the resistance between terminals 15 (CA5H) and 16 (CA5L) of the central gateway ECU (network gateway ECU) is 70 Ω or higher. Detection Item Trouble Area Resistance between ter ...
