Toyota Tacoma (2015-2018) Service Manual: Components
COMPONENTS

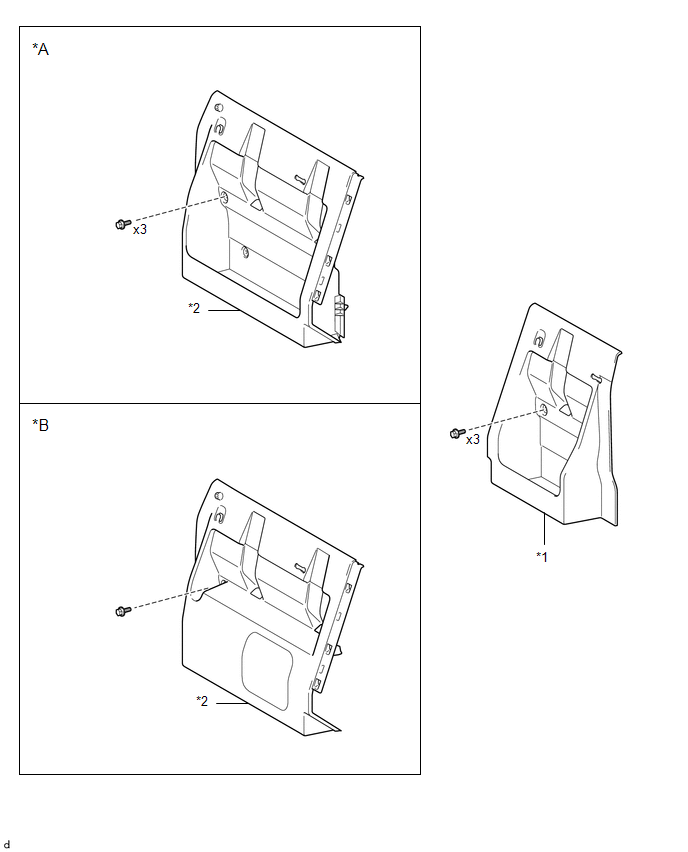

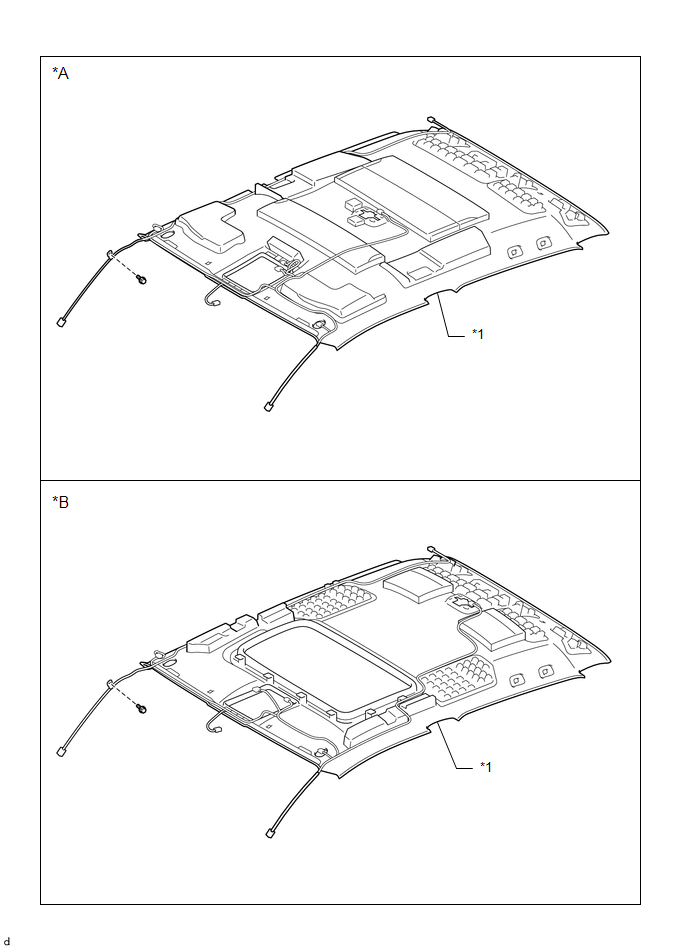

ILLUSTRATION
|
*A |
w/o Woofer |
*B |
w/ Woofer |
|
*1 |
LUGGAGE COMPARTMENT SIDE TRAY LH |
*2 |
LUGGAGE COMPARTMENT SIDE TRAY RH |

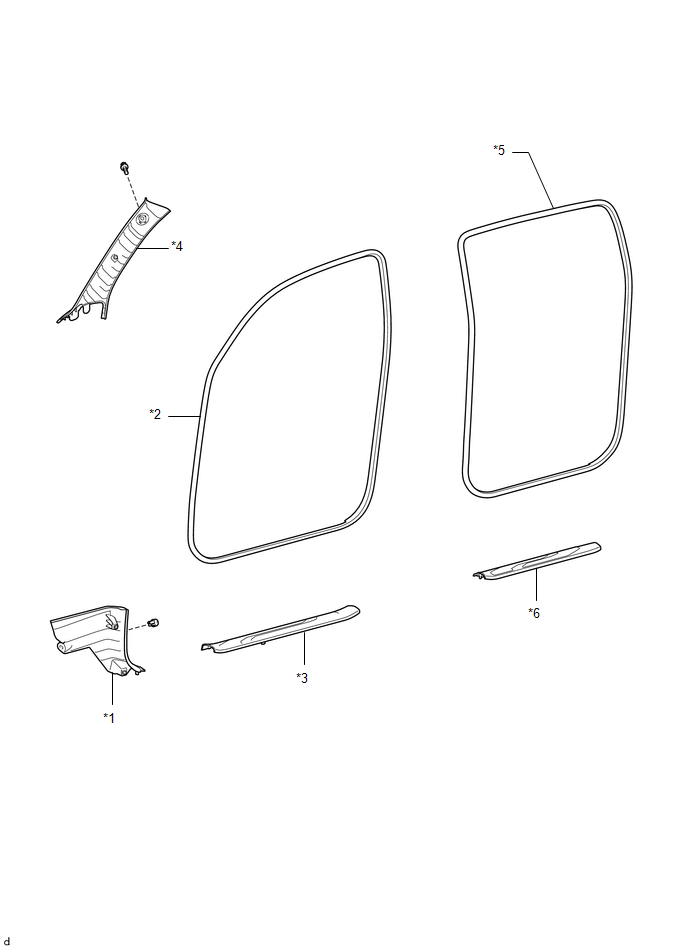

ILLUSTRATION
|
*1 |
COWL SIDE TRIM BOARD LH |
*2 |
FRONT DOOR OPENING TRIM WEATHERSTRIP LH |
|
*3 |
FRONT DOOR SCUFF PLATE LH |
*4 |
FRONT PILLAR GARNISH LH |
|
*5 |
REAR DOOR OPENING TRIM WEATHERSTRIP LH |
*6 |
REAR DOOR SCUFF PLATE LH |

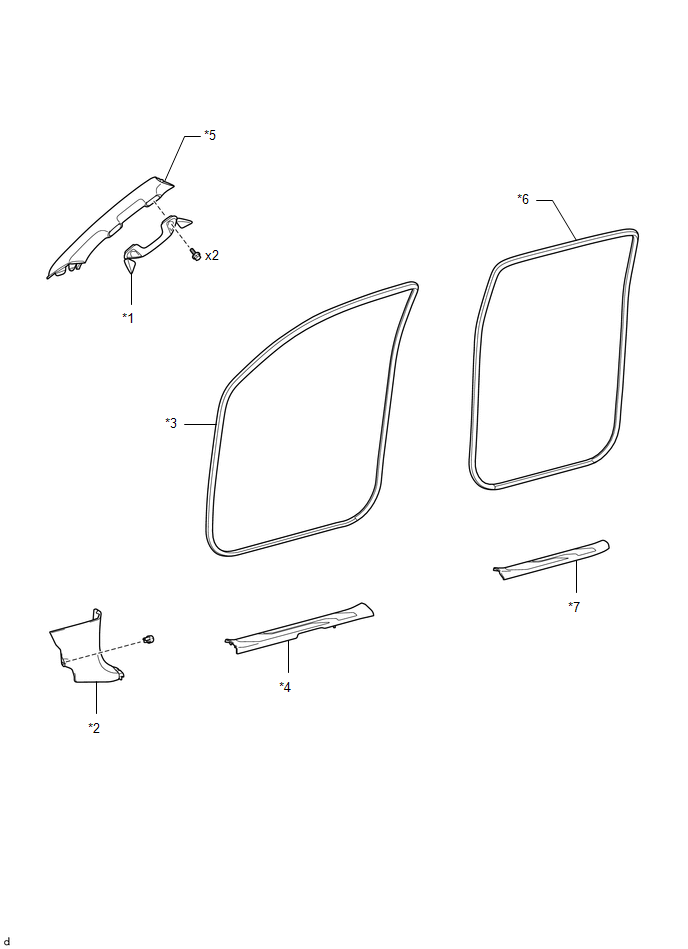

ILLUSTRATION
|
*1 |
ASSIST GRIP SUB-ASSEMBLY |
*2 |
COWL SIDE TRIM BOARD RH |
|
*3 |
FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
*4 |
FRONT DOOR SCUFF PLATE RH |
|
*5 |
FRONT PILLAR GARNISH RH |
*6 |
REAR DOOR OPENING TRIM WEATHERSTRIP RH |
|
*7 |
REAR DOOR SCUFF PLATE RH |
- |
- |

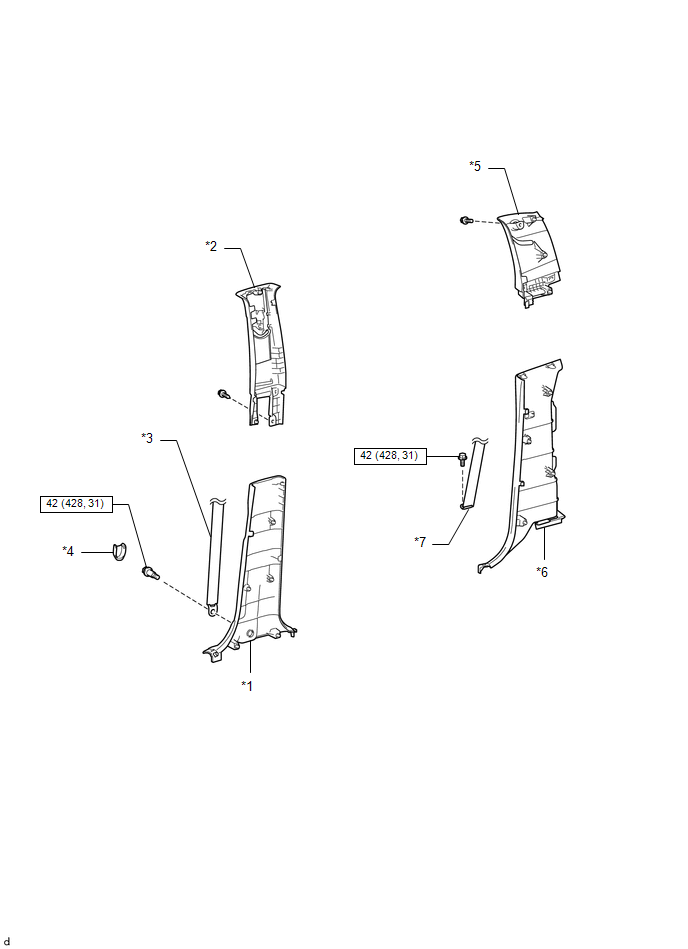

ILLUSTRATION
|
*1 |
CENTER PILLAR LOWER GARNISH LH |
*2 |
CENTER PILLAR UPPER GARNISH LH |
|
*3 |
FRONT SEAT OUTER BELT ASSEMBLY LH |
*4 |
LAP BELT OUTER ANCHOR COVER |
|
*5 |
QUARTER TRIM INSIDE BOARD LH |
*6 |
QUARTER TRIM LOWER PANEL LH |
|
*7 |
REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH |
- |
- |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

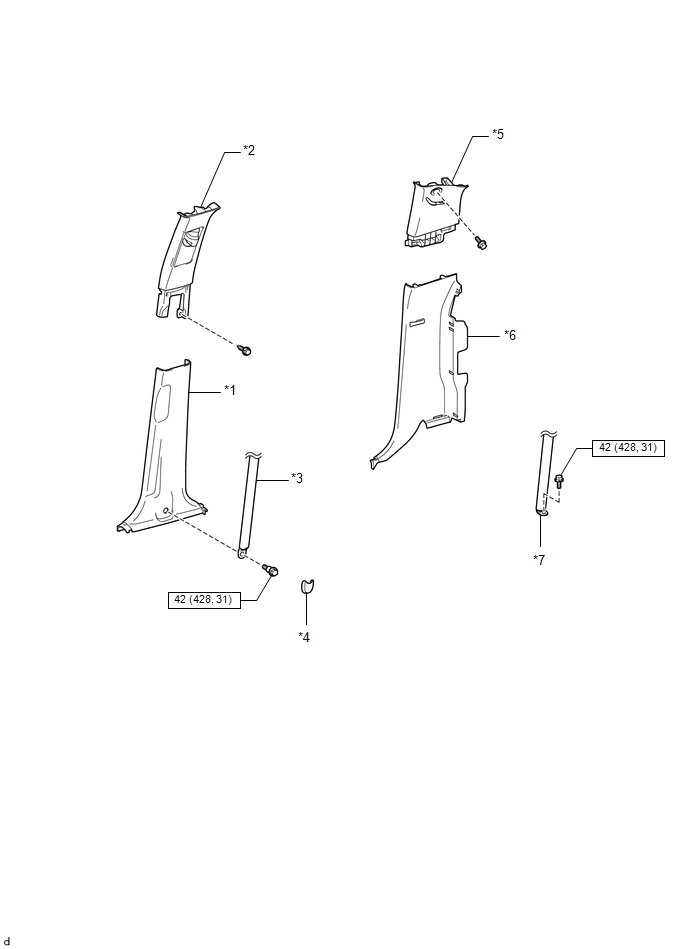

ILLUSTRATION
|
*1 |
CENTER PILLAR LOWER GARNISH RH |
*2 |
CENTER PILLAR UPPER GARNISH RH |
|
*3 |
FRONT SEAT OUTER BELT ASSEMBLY RH |
*4 |
LAP BELT OUTER ANCHOR COVER |
|
*5 |
QUARTER TRIM INSIDE BOARD RH |
*6 |
QUARTER TRIM LOWER PANEL RH |
|
*7 |
REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH |
- |
- |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

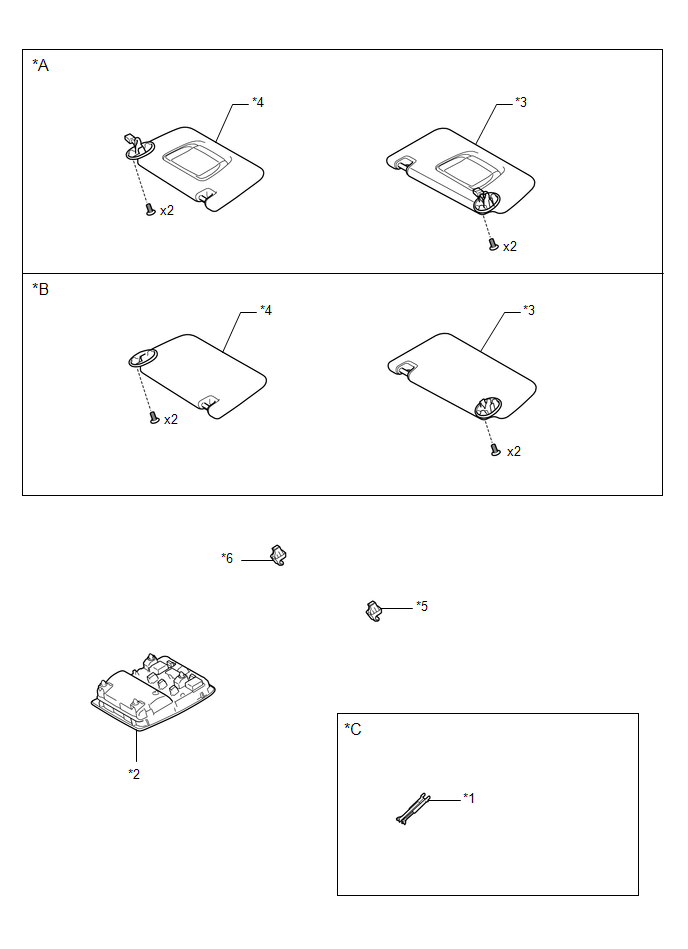

ILLUSTRATION
.png)
|
*A |
w/ Vanity Light |
*B |
w/o Vanity Light |
|
*C |
w/ EC Mirror |
- |
- |
|
*1 |
INNER REAR VIEW MIRROR COVER |
*2 |
ROOF CONSOLE BOX ASSEMBLY |
|
*3 |
VISOR ASSEMBLY LH |
*4 |
VISOR ASSEMBLY RH |
|
*5 |
VISOR HOLDER LH |
*6 |
VISOR HOLDER RH |

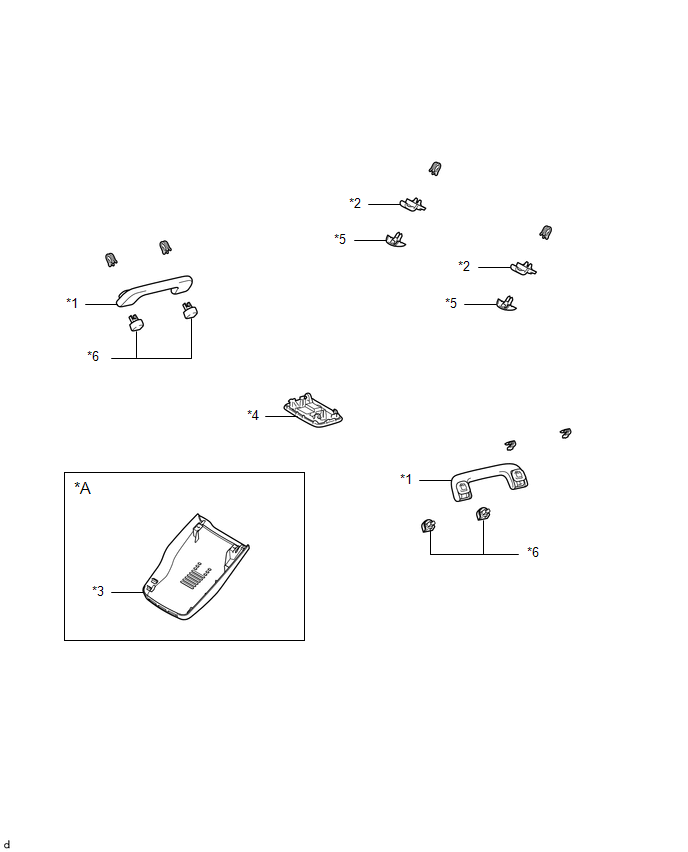

ILLUSTRATION
|
*A |
w/ Toyota Safety Sense P |
- |
- |
|
*1 |
ASSIST GRIP SUB-ASSEMBLY |
*2 |
COAT HOOK |
|
*3 |
NO. 1 FORWARD RECOGNITION COVER |
*4 |
NO. 1 ROOM LIGHT ASSEMBLY |
|
*5 |
COVER |
*6 |
ASSIST GRIP COVER |
ILLUSTRATION
|
*A |
w/o Sliding Roof |
*B |
w/ Sliding Roof |
|
*1 |
ROOF HEADLINING ASSEMBLY |
- |
- |

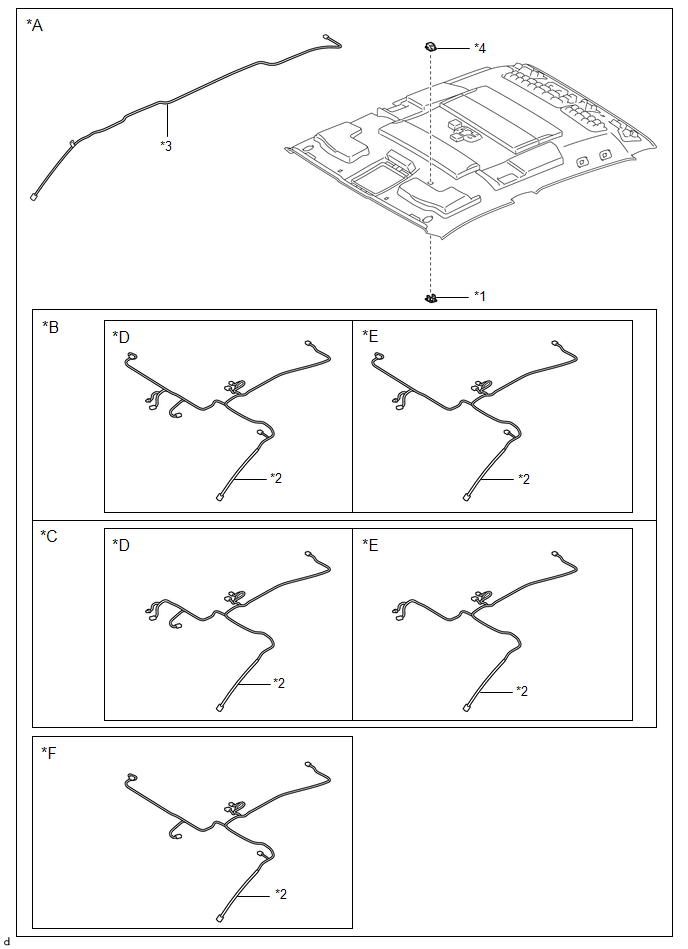

ILLUSTRATION
|
*A |
w/o Sliding Roof |
*B |
w/ Vanity Light |
|
*C |
w/o Vanity Light |
*D |
w/ EC Mirror |
|
*E |
w/o EC Mirror |
*F |
w/o Toyota Safety Sense P |
|
*1 |
MICROPHONE CASE |
*2 |
NO. 1 ROOF WIRE |
|
*3 |
NO. 2 ANTENNA CORD SUB-ASSEMBLY |
*4 |
TELEPHONE MICROPHONE ASSEMBLY |

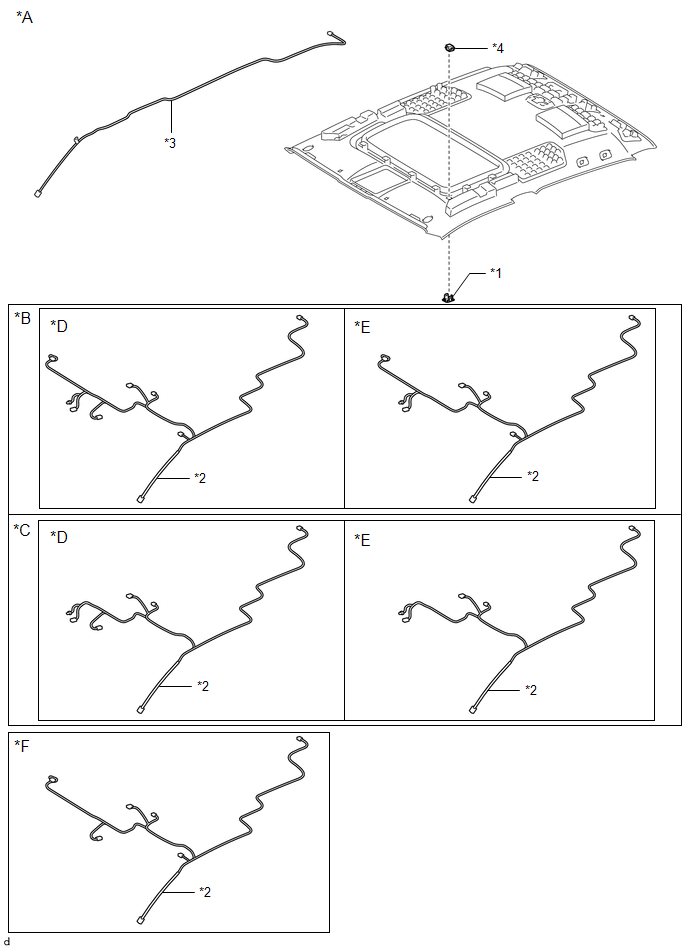

ILLUSTRATION
|
*A |
w/ Sliding Roof |
*B |
w/ Vanity Light |
|
*C |
w/o Vanity Light |
*D |
w/ EC Mirror |
|
*E |
w/o EC Mirror |
*F |
w/o Toyota Safety Sense P |
|
*1 |
MICROPHONE CASE |
*2 |
NO. 1 ROOF WIRE |
|
*3 |
NO. 2 ANTENNA CORD SUB-ASSEMBLY |
*4 |
TELEPHONE MICROPHONE ASSEMBLY |
Disassembly
DISASSEMBLY
PROCEDURE
1. REMOVE TELEPHONE MICROPHONE ASSEMBLY
Click here
2. REMOVE MICROPHONE CASE
(a) w/o Sliding Roof:
(1) Disengage the claw and guide to remove the microphone ...
