DESCRIPTION

The main body ECU (multiplex network body ECU) detects a high beam headlight illumination request signal of the automatic high beam system from the forward recognition camera

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B124C

Automatic High Beam Camera

Malfunction in forward recognition camera

Forward recognition camera system

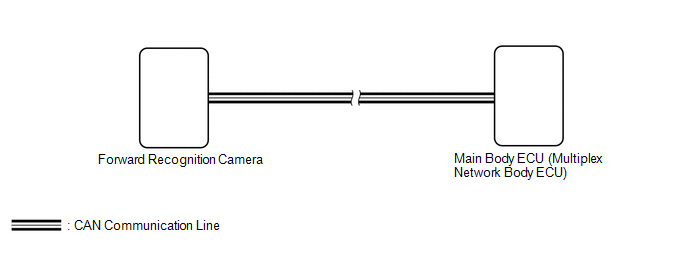

WIRING DIAGRAM

PROCEDURE

PROCEDURE

1.

CHECK FORWARD RECOGNITION CAMERA SYSTEM

(a) Check the forward recognition camera system.

Click here

Proceed to

NEXT

NEXT

END

Automatic High Beam System (B124B)
DESCRIPTION The main body ECU (multiplex network body ECU) determines the status of the automatic high beam system based on the automatic high beam system signal from the forward recognition came ...

Lost Communication with Front Camera Module (U023A)
DESCRIPTION These DTCs are stored when the CAN communication system is malfunctioning. DTC No.   DTC Detecting Condition Trouble Area U023A ...
