Toyota Tacoma (2015-2018) Service Manual: Open in Rear Floor Electrical Key Oscillator Circuit (B27A6)

Toyota Tacoma (2015-2018) Service Manual / Door Lock / Smart Key System(for Entry Function) / Open in Rear Floor Electrical Key Oscillator Circuit (B27A6)

DESCRIPTION

The certification ECU (smart key ECU assembly) generates a request signal and transmits the signal to the No. 2 indoor electrical key antenna assembly (rear floor). For the No. 2 indoor electrical key antenna assembly (rear floor) to detect when the electrical key transmitter sub-assembly is inside the vehicle, the signal from the certification ECU (smart key ECU assembly) requesting a response from the electrical key transmitter sub-assembly is transmitted inside the vehicle. DTC B27A6 is stored by the certification ECU (smart key ECU assembly) when an open circuit is detected between the certification ECU (smart key ECU assembly) and No. 2 indoor electrical key antenna assembly (rear floor) (between terminals CLG6 and CLG, or terminals CG6B and CLGB).

DTC Code

DTC Detection Condition

Trouble Area

DTC Output Confirmation Operation

B27A6

An open circuit is detected in the circuit between the certification ECU (smart key ECU assembly) and No. 2 indoor electrical key antenna assembly (rear floor) (CLG6 - CLG, CG6B - CLGB)

(1 trip detection logic*).
  • Wire harness or connector
  • No. 2 indoor electrical key antenna assembly (rear floor)
  • Certification ECU (smart key ECU assembly)

Any time
  • *: Only output while a malfunction is present.
Vehicle Condition and Fail-safe Operation when Malfunction Detected

Vehicle Condition when Malfunction Detected

Fail-safe Operation when Malfunction Detected

When electrical key transmitter sub-assembly is in rear seat area:

  • Power source mode does not change when engine switch pressed
  • Electrical key transmitter sub-assembly locked inside vehicle

-
Related Data List and Active Test

DTC Code

Data List and Active Test

B27A6

Key diagnostic mode can be used to perform troubleshooting

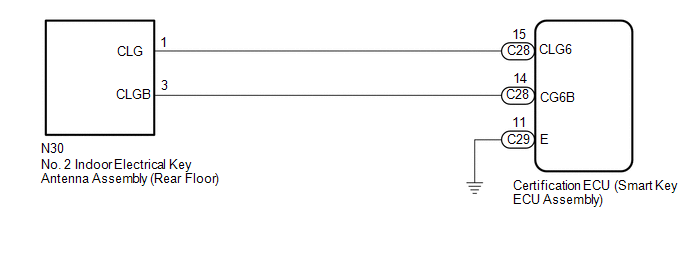

WIRING DIAGRAM

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

NOTICE:

  • The smart key system (for Entry Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart key system (for Entry Function) after confirming that the communication systems are functioning properly (See page When using the Techstream with the engine switch off, connect the Techstream ).
  • When using the Techstream with the engine switch off, connect the Techstream to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the Techstream and the vehicle begins. Then select the vehicle type under manual mode and enter the following menus: Body Electrical / Smart Key. While using the Techstream, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the Techstream and the vehicle.
  • Before replacing the certification ECU (smart key ECU assembly), refer to smart key system (for Entry Function) Precaution (See page After repair, confirm that no DTCs are output by performing "DTC Output ).
  • After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".

PROCEDURE

1.

CHECK CONNECTOR CONNECTION

(a) Turn the engine switch off.

(b) Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and No. 2 indoor electrical key antenna assembly (rear floor).

OK:

Connectors are properly connected.

NG

CONNECT CONNECTORS PROPERLY
OK

2.

CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - NO. 2 INDOORELECTRICAL KEY ANTENNA ASSEMBLY)

(a) Disconnect the C28 and C29 certification ECU (smart key ECU assembly) connectors.

(b) Disconnect the N30 No. 2 indoor electrical key antenna assembly (rear floor) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C28-15 (CLG6) - N30-1 (CLG)

Always

Below 1 Ω

C28-14 (CG6B) - N30-3 (CLGB)

Always

Below 1 Ω

C29-11 (E) - Body ground

Always

Below 1 Ω

C28-15 (CLG6) or N30-1 (CLG) - Body ground

Always

10 kΩ or higher

C28-14 (CG6B) or N30-3 (CLGB) - Body ground

Always

10 kΩ or higher
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

3.

CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO NO. 2 INDOORELECTRICAL KEY ANTENNA ASSEMBLY)

(a) Connect the C28 and C29 certification ECU (smart key ECU assembly) connectors.

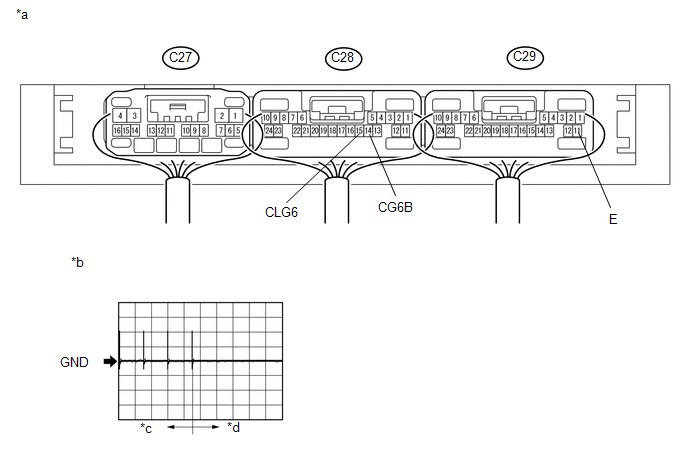

Text in Illustration

*a

Component with harness connected

(Certification ECU (smart key ECU assembly))

*b

Waveform 1

*c

For 30 seconds after closing any door using the door outside handle

*d

30 seconds or more have elapsed after closing any door using the door outside handle

(b) Connect the N30 No. 2 indoor electrical key antenna assembly (rear floor) connector.

(c) Using an oscilloscope, check the waveform.

OK:

Tester Connection

Switch Condition

Tool Setting

Tool Setting

C28-15 (CLG6) - C29-11 (E)
Procedure:
  1. Engine switch off
  2. Electrical key transmitter sub-assembly not inside vehicle
  3. Within 30 seconds of closing any door using the door outside handle

2 V/DIV., 500 ms./DIV.

Pulse generation

(See waveform 1)

C28-14 (CG6B) - C29-11 (E)
Procedure:
  1. Engine switch off
  2. Electrical key transmitter sub-assembly not inside vehicle
  3. Within 30 seconds of closing any door using the door outside handle

2 V/DIV., 500 ms./DIV.

Pulse generation

(See waveform 1)
NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

OK

4.

REPLACE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR)

(a) Temporarily replace the No. 2 indoor electrical key antenna assembly (rear floor) with a new or known good one (See page ).

NEXT

5.

CLEAR DTC

(a) Clear the DTCs (See page ).

NEXT

6.

CHECK FOR DTC

(a) Check for DTCs (See page OK: ).

OK:

DTC B27A6 is not output.

OK

END (NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR) WAS DEFECTIVE)
NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
