PROCEDURE
|
1. |
CHECK PANEL SWITCH |
(a) Check for foreign matter around the switches that might prevent operation.
OK:
No foreign matter is found.
| NG | |
REMOVE ANY FOREIGN MATTER FOUND |
|
|
2. |
CHECK PANEL SWITCH (OPERATION CHECK) |
|

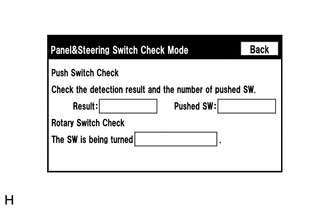

(a) Enter the "Panel & Steering Switch Check Mode" screen. Refer to Check
Panel & Steering Switch in Operation Check (See page
|
|
(b) Operate the abnormal switch and check if the switch status is correctly displayed.
OK:
The switch status is correctly displayed as operated.
| OK | |
REPLACE NAVIGATION RECEIVER ASSEMBLY |
| NG | |
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE |
